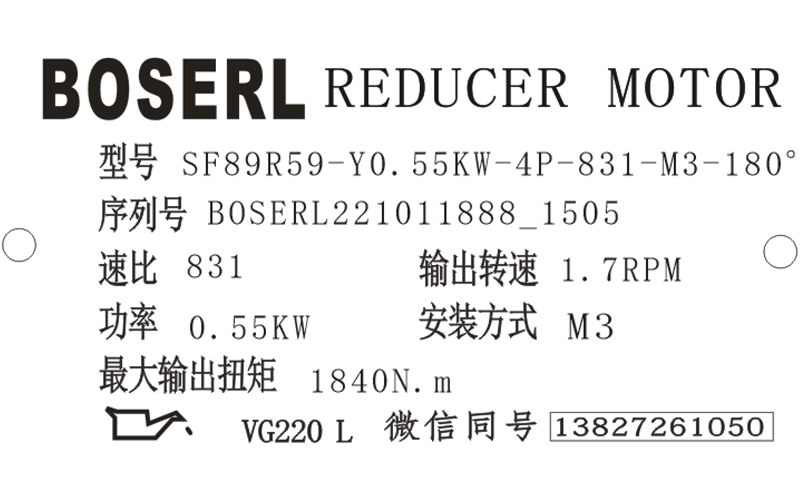

SF89R59減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF89R59減速機選型樣本。

SF89R59-Y0.55KW-4P-831-M3-180°

SF/R：系列代號

89/59：減速機規格代號

Y：電機

0.55KW：電機功率

4P：電機級數

831：減速機傳動比

M3：減速機安裝位置

180°：接線盒位置

SF89R59減速機電機安裝注意事項：

注意要將設備擺放平穩，固定好地腳和法蘭，并精確校準直接連接的聯軸器。防止安裝不當造成旋轉頻率和雙倍電源頻率的諧振。用手轉動轉子，檢查有無異常摩擦聲。在未聯接外部設備的狀態下檢查轉向。齒輪減速電機

SF89R59減速機電機安裝在塵埃灰屑或水滴等較多處，會對本機器會產生不良影響時，請用覆蓋物蓋住，覆蓋物不要密封，必須留有通氣口（若工作環境粉塵密聚或需要防水機種，購買時請特別說明）。

嚴禁在SF89R59減速機電機的周圍放置可燃物。否則有可能會導致火災。

嚴禁在SF89R59減速機電機的周圍放置阻礙通風的障礙物。否則，可能會因冷卻不暢、異常過熱而導致燙傷、火災等情況。

嚴禁站立在SF89R59減速機電機上面或懸掛其上。否則有可能會導致受傷。

請勿赤手觸摸SF89R59減速機電機的軸端部、內徑部的鍵槽。否則有可能會導致受傷。自鎖減速機

安裝完后，檢查電機是否通風良好。且確認沒有鄰近設備、表面或直射陽光向電機額外輻射熱量。

SF89R59減速機電機電流異常解決方案：

SF89R59減速機電機外殼帶電：電源線碰機殼，且絕緣皮破損，電源線修復；繞組受潮、絕緣老化、接地裝置壞，維修換定子線圈，重裝接地線。

SF89R59減速機電機三相電流不平衡：三相電壓不平衡，維修電源電壓；線圈部分線圈短路，更換定子線圈；線圈內有一個線苞嵌反，更換定子線圈。

SF89R59減速機電機電流過大：電源電壓偏差大，維修電源電壓；接法錯誤，應是Y接法錯用為△接法，接法更正；更換電機，定轉子擦；負載過大，選用大容量電機或減小負載。伺服電機蝸輪蝸桿減速機

SF89R59減速電機型號：

YQSF87R57-Y63M4，YQSF87R57-Y71M4，YQSF87R57-Y80M4，YQSF87R57-Y90M4，YQSF87RF57-Y0.12KW，YQSF87RF57-Y0.18KW，YQSF87RF57-Y0.25KW，YQSF87RF57-Y0.37KW，YQSF87RF57-Y0.55KW，YQSF87RF57-Y0.75KW，YQSF87RF57-Y1.1KW，YQSF87RF57-Y1.5KW，YQSF87RF57-Y63M4，YQSF87RF57-Y71M4，YQSF87RF57-Y80M4，YQSF87RF57-Y90M4，YQSF87RF57-YB63M4，YQSF87RF57-YB71M4，YQSF87RF57-YB80M4，YQSF87RF57-YB90S4，YQSF87RF57-YDP63M4，YQSF87RF57-YDP71M4，YQSF87RF57-YDP80M4，YQSF87RF57-YDP90S4，YQSF87RF57-YE63M4，YQSF87RF57-YE71M4，YQSF87RF57-YE80M4，YQSF87RF57-YE90S4，YQSF87RF57-YEJ63M4，YQSF87RF57-YEJ71M4，YQSF87RF57-YEJ80M4，YQSF87RF57-YEJ90S4，YQSF87RF57-YEJB63M4，YQSF87RF57-YEJB71M4，YQSF87RF57-YEJB80M4，YQSF87RF57-YEJB90S4，YQSF87RF57-YP63M4，YQSF87RF57-YP71M4，YQSF87RF57-YP80M4，YQSF87RF57-YP90S4，YQSF87RF57-YPB63M4，YQSF87RF57-YPB71M4，YQSF87RF57-YPB80M4，YQSF87RF57-YPB90S4，YQSF87RF57-YPE63M4，YQSF87RF57-YPE71M4，YQSF87RF57-YPE80M4，YQSF87RF57-YPE90S4，YQSF87RF57-YSF63M4，YQSF87RF57-YSF71M4，YQSF87RF57-YSF80M4，YQSF87RF57-YSF90S4，YQSF87RF57-YVB63M4，YQSF87RF57-YVB71M4，YQSF87RF57-YVB80M4，YQSF87RF57-YVB90S4，YQSF87RF57-YVP63M4，YQSF87RF57-YVP71M4，YQSF87RF57-YVP80M4，YQSF87RF57-YVP90S4，ASF87R57-Y63M4，ASF87R57-Y71M4，ASF87R57-Y80M4，ASF87R57-Y90M4，ASF87RF57-Y0.12KW，ASF87RF57-Y0.18KW，ASF87RF57-Y0.25KW，ASF87RF57-Y0.37KW，ASF87RF57-Y0.55KW，ASF87RF57-Y0.75KW，ASF87RF57-Y1.1KW，ASF87RF57-Y1.5KW，ASF87RF57-Y63M4，ASF87RF57-Y71M4，ASF87RF57-Y80M4，ASF87RF57-Y90M4，ASF87RF57-YB63M4，ASF87RF57-YB71M4，ASF87RF57-YB80M4，ASF87RF57-YB90S4，ASF87RF57-YDP63M4，ASF87RF57-YDP71M4，ASF87RF57-YDP80M4，ASF87RF57-YDP90S4，ASF87RF57-YE63M4，ASF87RF57-YE71M4，ASF87RF57-YE80M4，ASF87RF57-YE90S4，ASF87RF57-YEJ63M4，ASF87RF57-YEJ71M4，ASF87RF57-YEJ80M4，ASF87RF57-YEJ90S4，ASF87RF57-YEJB63M4，ASF87RF57-YEJB71M4，ASF87RF57-YEJB80M4，ASF87RF57-YEJB90S4，ASF87RF57-YP63M4，ASF87RF57-YP71M4，ASF87RF57-YP80M4，ASF87RF57-YP90S4，ASF87RF57-YPB63M4，ASF87RF57-YPB71M4，ASF87RF57-YPB80M4，ASF87RF57-YPB90S4，ASF87RF57-YPE63M4，ASF87RF57-YPE71M4，ASF87RF57-YPE80M4，ASF87RF57-YPE90S4，ASF87RF57-YSF63M4，ASF87RF57-YSF71M4，ASF87RF57-YSF80M4，ASF87RF57-YSF90S4，ASF87RF57-YVB63M4，ASF87RF57-YVB71M4，ASF87RF57-YVB80M4，ASF87RF57-YVB90S4，ASF87RF57-YVP63M4，ASF87RF57-YVP71M4，ASF87RF57-YVP80M4，ASF87RF57-YVP90S4，SSF87R57-Y63M4，SSF87R57-Y71M4，SSF87R57-Y80M4，SSF87R57-Y90M4，SSF87RF57-Y0.12KW，SSF87RF57-Y0.18KW，SSF87RF57-Y0.25KW，SSF87RF57-Y0.37KW，SSF87RF57-Y0.55KW，SSF87RF57-Y0.75KW，SSF87RF57-Y1.1KW，SSF87RF57-Y1.5KW，SSF87RF57-Y63M4，SSF87RF57-Y71M4，SSF87RF57-Y80M4，SSF87RF57-Y90M4，SSF87RF57-YB63M4，SSF87RF57-YB71M4，SSF87RF57-YB80M4，SSF87RF57-YB90S4，SSF87RF57-YDP63M4，SSF87RF57-YDP71M4，SSF87RF57-YDP80M4，SSF87RF57-YDP90S4，SSF87RF57-YE63M4，SSF87RF57-YE71M4，SSF87RF57-YE80M4，SSF87RF57-YE90S4，SSF87RF57-YEJ63M4，SSF87RF57-YEJ71M4，SSF87RF57-YEJ80M4，SSF87RF57-YEJ90S4，SSF87RF57-YEJB63M4，SSF87RF57-YEJB71M4，SSF87RF57-YEJB80M4，SSF87RF57-YEJB90S4，SSF87RF57-YP63M4，SSF87RF57-YP71M4，SSF87RF57-YP80M4，SSF87RF57-YP90S4，SSF87RF57-YPB63M4，SSF87RF57-YPB71M4，SSF87RF57-YPB80M4，SSF87RF57-YPB90S4，SSF87RF57-YPE63M4，SSF87RF57-YPE71M4，SSF87RF57-YPE80M4，SSF87RF57-YPE90S4，SSF87RF57-YSF63M4，SSF87RF57-YSF71M4，SSF87RF57-YSF80M4，SSF87RF57-YSF90S4，SSF87RF57-YVB63M4，SSF87RF57-YVB71M4，SSF87RF57-YVB80M4，SSF87RF57-YVB90S4，SSF87RF57-YVP63M4，SSF87RF57-YVP71M4，SSF87RF57-YVP80M4，SSF87RF57-YVP90S4，XDSF87R57-Y63M4，XDSF87R57-Y71M4，XDSF87R57-Y80M4，XDSF87R57-Y90M4，XDSF87RF57-Y0.12KW，XDSF87RF57-Y0.18KW，XDSF87RF57-Y0.25KW，XDSF87RF57-Y0.37KW，XDSF87RF57-Y0.55KW，XDSF87RF57-Y0.75KW，XDSF87RF57-Y1.1KW，XDSF87RF57-Y1.5KW，XDSF87RF57-Y63M4，XDSF87RF57-Y71M4，XDSF87RF57-Y80M4，XDSF87RF57-Y90M4，XDSF87RF57-YB63M4，XDSF87RF57-YB71M4，XDSF87RF57-YB80M4，XDSF87RF57-YB90S4，XDSF87RF57-YDP63M4，XDSF87RF57-YDP71M4，XDSF87RF57-YDP80M4，XDSF87RF57-YDP90S4，XDSF87RF57-YE63M4，XDSF87RF57-YE71M4，XDSF87RF57-YE80M4，XDSF87RF57-YE90S4，XDSF87RF57-YEJ63M4，XDSF87RF57-YEJ71M4，XDSF87RF57-YEJ80M4，XDSF87RF57-YEJ90S4，XDSF87RF57-YEJB63M4，XDSF87RF57-YEJB71M4，XDSF87RF57-YEJB80M4，XDSF87RF57-YEJB90S4，XDSF87RF57-YP63M4，XDSF87RF57-YP71M4，XDSF87RF57-YP80M4，XDSF87RF57-YP90S4，XDSF87RF57-YPB63M4，XDSF87RF57-YPB71M4，XDSF87RF57-YPB80M4，XDSF87RF57-YPB90S4，XDSF87RF57-YPE63M4，XDSF87RF57-YPE71M4，XDSF87RF57-YPE80M4，XDSF87RF57-YPE90S4，XDSF87RF57-YSF63M4，XDSF87RF57-YSF71M4，XDSF87RF57-YSF80M4，XDSF87RF57-YSF90S4，XDSF87RF57-YVB63M4，XDSF87RF57-YVB71M4，XDSF87RF57-YVB80M4，XDSF87RF57-YVB90S4，XDSF87RF57-YVP63M4，XDSF87RF57-YVP71M4，XDSF87RF57-YVP80M4，XDSF87RF57-YVP90S4，WSF87R57-Y63M4，WSF87R57-Y71M4，WSF87R57-Y80M4，WSF87R57-Y90M4，WSF87RF57-Y0.12KW，WSF87RF57-Y0.18KW，WSF87RF57-Y0.25KW，WSF87RF57-Y0.37KW，WSF87RF57-Y0.55KW，WSF87RF57-Y0.75KW，WSF87RF57-Y1.1KW，WSF87RF57-Y1.5KW，WSF87RF57-Y63M4，WSF87RF57-Y71M4，WSF87RF57-Y80M4，WSF87RF57-Y90M4，WSF87RF57-YB63M4，WSF87RF57-YB71M4，WSF87RF57-YB80M4，WSF87RF57-YB90S4，WSF87RF57-YDP63M4，WSF87RF57-YDP71M4，WSF87RF57-YDP80M4，WSF87RF57-YDP90S4，WSF87RF57-YE63M4，WSF87RF57-YE71M4，WSF87RF57-YE80M4，WSF87RF57-YE90S4，WSF87RF57-YEJ63M4，WSF87RF57-YEJ71M4，WSF87RF57-YEJ80M4，WSF87RF57-YEJ90S4，WSF87RF57-YEJB63M4，WSF87RF57-YEJB71M4，WSF87RF57-YEJB80M4，WSF87RF57-YEJB90S4，WSF87RF57-YP63M4，WSF87RF57-YP71M4，WSF87RF57-YP80M4，WSF87RF57-YP90S4，WSF87RF57-YPB63M4，WSF87RF57-YPB71M4，WSF87RF57-YPB80M4，WSF87RF57-YPB90S4，WSF87RF57-YPE63M4，WSF87RF57-YPE71M4，WSF87RF57-YPE80M4，WSF87RF57-YPE90S4，WSF87RF57-YSF63M4，WSF87RF57-YSF71M4，WSF87RF57-YSF80M4，WSF87RF57-YSF90S4，WSF87RF57-YVB63M4，WSF87RF57-YVB71M4，WSF87RF57-YVB80M4，WSF87RF57-YVB90S4，WSF87RF57-YVP63M4，WSF87RF57-YVP71M4，WSF87RF57-YVP80M4，WSF87RF57-YVP90S4，JCSF87R57-Y63M4，JCSF87R57-Y71M4，JCSF87R57-Y80M4，JCSF87R57-Y90M4，JCSF87RF57-Y0.12KW，JCSF87RF57-Y0.18KW，JCSF87RF57-Y0.25KW，JCSF87RF57-Y0.37KW，JCSF87RF57-Y0.55KW，JCSF87RF57-Y0.75KW，JCSF87RF57-Y1.1KW，JCSF87RF57-Y1.5KW，JCSF87RF57-Y63M4，JCSF87RF57-Y71M4，JCSF87RF57-Y80M4，JCSF87RF57-Y90M4，JCSF87RF57-YB63M4，JCSF87RF57-YB71M4，JCSF87RF57-YB80M4，JCSF87RF57-YB90S4，JCSF87RF57-YDP63M4，JCSF87RF57-YDP71M4，JCSF87RF57-YDP80M4，JCSF87RF57-YDP90S4，JCSF87RF57-YE63M4，JCSF87RF57-YE71M4，JCSF87RF57-YE80M4，JCSF87RF57-YE90S4，JCSF87RF57-YEJ63M4，JCSF87RF57-YEJ71M4，JCSF87RF57-YEJ80M4，JCSF87RF57-YEJ90S4，JCSF87RF57-YEJB63M4，JCSF87RF57-YEJB71M4，JCSF87RF57-YEJB80M4，JCSF87RF57-YEJB90S4，JCSF87RF57-YP63M4，JCSF87RF57-YP71M4，JCSF87RF57-YP80M4，JCSF87RF57-YP90S4，JCSF87RF57-YPB63M4，JCSF87RF57-YPB71M4，JCSF87RF57-YPB80M4，JCSF87RF57-YPB90S4，JCSF87RF57-YPE63M4，JCSF87RF57-YPE71M4，JCSF87RF57-YPE80M4，JCSF87RF57-YPE90S4，JCSF87RF57-YSF63M4，JCSF87RF57-YSF71M4，JCSF87RF57-YSF80M4，JCSF87RF57-YSF90S4，JCSF87RF57-YVB63M4，JCSF87RF57-YVB71M4，JCSF87RF57-YVB80M4，JCSF87RF57-YVB90S4，JCSF87RF57-YVP63M4，JCSF87RF57-YVP71M4，JCSF87RF57-YVP80M4，JCSF87RF57-YVP90S4，NSF87R57-Y63M4，NSF87R57-Y71M4，NSF87R57-Y80M4，NSF87R57-Y90M4，NSF87RF57-Y0.12KW，NSF87RF57-Y0.18KW，NSF87RF57-Y0.25KW，NSF87RF57-Y0.37KW，NSF87RF57-Y0.55KW，NSF87RF57-Y0.75KW，NSF87RF57-Y1.1KW，NSF87RF57-Y1.5KW，NSF87RF57-Y63M4，NSF87RF57-Y71M4，NSF87RF57-Y80M4，NSF87RF57-Y90M4，NSF87RF57-YB63M4，NSF87RF57-YB71M4，NSF87RF57-YB80M4，NSF87RF57-YB90S4，NSF87RF57-YDP63M4，NSF87RF57-YDP71M4，NSF87RF57-YDP80M4，NSF87RF57-YDP90S4，NSF87RF57-YE63M4，NSF87RF57-YE71M4，NSF87RF57-YE80M4，NSF87RF57-YE90S4，NSF87RF57-YEJ63M4，NSF87RF57-YEJ71M4，NSF87RF57-YEJ80M4，NSF87RF57-YEJ90S4，NSF87RF57-YEJB63M4，NSF87RF57-YEJB71M4，NSF87RF57-YEJB80M4，NSF87RF57-YEJB90S4，NSF87RF57-YP63M4，NSF87RF57-YP71M4，NSF87RF57-YP80M4，NSF87RF57-YP90S4，NSF87RF57-YPB63M4，NSF87RF57-YPB71M4，NSF87RF57-YPB80M4，NSF87RF57-YPB90S4，NSF87RF57-YPE63M4，NSF87RF57-YPE71M4，NSF87RF57-YPE80M4，NSF87RF57-YPE90S4，NSF87RF57-YSF63M4，NSF87RF57-YSF71M4，NSF87RF57-YSF80M4，NSF87RF57-YSF90S4，NSF87RF57-YVB63M4，NSF87RF57-YVB71M4，NSF87RF57-YVB80M4，NSF87RF57-YVB90S4，NSF87RF57-YVP63M4，NSF87RF57-YVP71M4，NSF87RF57-YVP80M4，NSF87RF57-YVP90S4，SWF87RW57-Y63M4，SWF87RW57-Y71M4，SWF87RW57-Y80M4，SWF87RW57-Y90M4，SWF87RWF57-Y0.12KW，SWF87RWF57-Y0.18KW，SWF87RWF57-Y0.25KW，SWF87RWF57-Y0.37KW，SWF87RWF57-Y0.55KW，SWF87RWF57-Y0.75KW，SWF87RWF57-Y1.1KW，SWF87RWF57-Y1.5KW，SWF87RWF57-Y63M4，SWF87RWF57-Y71M4，SWF87RWF57-Y80M4，SWF87RWF57-Y90M4，SWF87RWF57-YB63M4，SWF87RWF57-YB71M4，SWF87RWF57-YB80M4，SWF87RWF57-YB90S4，SWF87RWF57-YDP63M4，SWF87RWF57-YDP71M4，SWF87RWF57-YDP80M4，SWF87RWF57-YDP90S4，SWF87RWF57-YE63M4，SWF87RWF57-YE71M4，SWF87RWF57-YE80M4，SWF87RWF57-YE90S4，SWF87RWF57-YEJ63M4，SWF87RWF57-YEJ71M4，SWF87RWF57-YEJ80M4，SWF87RWF57-YEJ90S4，SWF87RWF57-YEJB63M4，SWF87RWF57-YEJB71M4，SWF87RWF57-YEJB80M4，SWF87RWF57-YEJB90S4，SWF87RWF57-YP63M4，SWF87RWF57-YP71M4，SWF87RWF57-YP80M4，SWF87RWF57-YP90S4，SWF87RWF57-YPB63M4，SWF87RWF57-YPB71M4，SWF87RWF57-YPB80M4，SWF87RWF57-YPB90S4，SWF87RWF57-YPE63M4，SWF87RWF57-YPE71M4，SWF87RWF57-YPE80M4，SWF87RWF57-YPE90S4，SWF87RWF57-YSF63M4，SWF87RWF57-YSF71M4，SWF87RWF57-YSF80M4，SWF87RWF57-YSF90S4，SWF87RWF57-YVB63M4，SWF87RWF57-YVB71M4，SWF87RWF57-YVB80M4，SWF87RWF57-YVB90S4，SWF87RWF57-YVP63M4，SWF87RWF57-YVP71M4，SWF87RWF57-YVP80M4，SWF87RWF57-YVP90S4，SF89R59-Y63M4，SF89R59-Y71M4，SF89R59-Y80M4，SF89R59-Y90M4，SF89RF59-Y0.12KW，SF89RF59-Y0.18KW，SF89RF59-Y0.25KW，SF89RF59-Y0.37KW，SF89RF59-Y0.55KW，SF89RF59-Y0.75KW，SF89RF59-Y1.1KW，SF89RF59-Y1.5KW，SF89RF59-Y63M4，SF89RF59-Y71M4，SF89RF59-Y80M4，SF89RF59-Y90M4，SF89RF59-YB63M4，SF89RF59-YB71M4，SF89RF59-YB80M4，SF89RF59-YB90S4，SF89RF59-YDP63M4，SF89RF59-YDP71M4，SF89RF59-YDP80M4，SF89RF59-YDP90S4，SF89RF59-YE63M4，SF89RF59-YE71M4，SF89RF59-YE80M4，SF89RF59-YE90S4，SF89RF59-YEJ63M4，SF89RF59-YEJ71M4，SF89RF59-YEJ80M4，SF89RF59-YEJ90S4，SF89RF59-YEJB63M4，SF89RF59-YEJB71M4，SF89RF59-YEJB80M4，SF89RF59-YEJB90S4，SF89RF59-YP63M4，SF89RF59-YP71M4，SF89RF59-YP80M4，SF89RF59-YP90S4，SF89RF59-YPB63M4，SF89RF59-YPB71M4，SF89RF59-YPB80M4，SF89RF59-YPB90S4，SF89RF59-YPE63M4，SF89RF59-YPE71M4，SF89RF59-YPE80M4，SF89RF59-YPE90S4，SF89RF59-YSF63M4，SF89RF59-YSF71M4，SF89RF59-YSF80M4，SF89RF59-YSF90S4，SF89RF59-YVB63M4，SF89RF59-YVB71M4，SF89RF59-YVB80M4，SF89RF59-YVB90S4，SF89RF59-YVP63M4，SF89RF59-YVP71M4，SF89RF59-YVP80M4，SF89RF59-YVP90S4。
