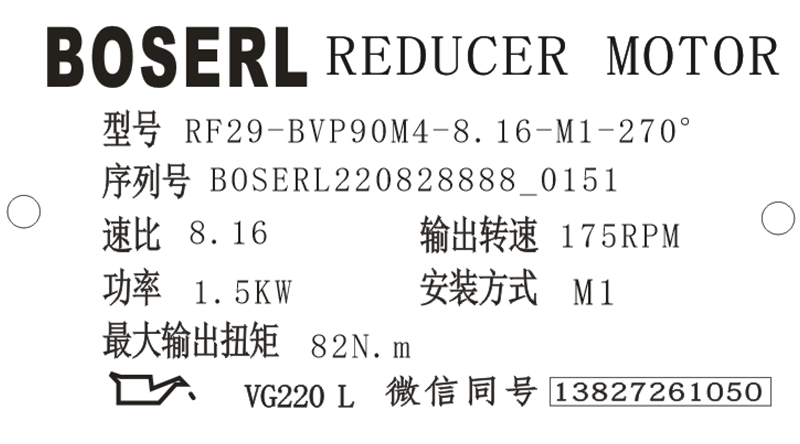

RF29減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RF29減速機選型樣本。

RF29-BVP90M4-8.16-M1-270°

RF：系列代號

29：減速機規格代號

B：電機

VP：變頻電機

90：電機規格代號

M：電機定子鐵心長度代號

4：電機級數

8.16：減速機傳動比

M1：減速機安裝位置

270°：接線盒位置

RF29減速機潤滑油型號：

RF29減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。

RF29減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的RF29減速機選型樣本中列出了安裝位置從M1到M6RF29減速機相應的潤滑油加注標準，請自行下載查看。

RF29減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據RF29減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“RF29減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。RF系列減速機

RF29減速機推薦使用的潤滑油，其等級和粘度指標見下表：

RF29減速機使用說明：

RF29減速機的螺母：立式安裝RF29減速機輸出法蘭直徑120螺母規格M6；立式安裝RF29減速機輸出法蘭直徑160螺母規格M8；RF29減速機螺母/螺母擰緊扭矩強度等級10.9。齒輪減速電機

RF29減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

RF29減速機警告說明：由于RF29減速機發熱或RF29減速機油溫過高可能引起燙傷；對RF29減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

RF29減速機注意事項：若未注入正確的RF29減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

RF29減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見RF29減速機說明書安裝位置章節中的內容。立式減速機

RF29減速機型號：

YQRF27-AM100M4，YQRF27-AM63M4，YQRF27-AM71M4，YQRF27-AM80M4，YQRF27-AM90M4，YQRF27-Y0.12KW，YQRF27-Y0.18KW，YQRF27-Y0.25KW，YQRF27-Y0.37KW，YQRF27-Y0.55KW，YQRF27-Y0.75KW，YQRF27-Y1.1KW，YQRF27-Y1.5KW，YQRF27-Y100M4，YQRF27-Y2.2KW，YQRF27-Y3KW，YQRF27-Y63M4，YQRF27-Y71M4，YQRF27-Y80M4，YQRF27-Y90M4，YQRF27-YB100M4，YQRF27-YB63M4，YQRF27-YB71M4，YQRF27-YB80M4，YQRF27-YB90M4，YQRF27-YDP100M4，YQRF27-YDP63M4，YQRF27-YDP71M4，YQRF27-YDP80M4，YQRF27-YDP90M4，YQRF27-YE100M4，YQRF27-YE63M4，YQRF27-YE71M4，YQRF27-YE80M4，YQRF27-YE90M4，YQRF27-YEJ100M4，YQRF27-YEJ63M4，YQRF27-YEJ71M4，YQRF27-YEJ80M4，YQRF27-YEJ90M4，YQRF27-YEJB100M4，YQRF27-YEJB63M4，YQRF27-YEJB71M4，YQRF27-YEJB80M4，YQRF27-YEJB90M4，YQRF27-YP100M4，YQRF27-YP63M4，YQRF27-YP71M4，YQRF27-YP80M4，YQRF27-YP90M4，YQRF27-YPB100M4，YQRF27-YPB63M4，YQRF27-YPB71M4，YQRF27-YPB80M4，YQRF27-YPB90M4，YQRF27-YPE100M4，YQRF27-YPE63M4，YQRF27-YPE71M4，YQRF27-YPE80M4，YQRF27-YPE90M4，YQRF27-YS100M4，YQRF27-YS63M4，YQRF27-YS71M4，YQRF27-YS80M4，YQRF27-YS90M4，YQRF27-YVB100M4，YQRF27-YVB63M4，YQRF27-YVB71M4，YQRF27-YVB80M4，YQRF27-YVB90M4，YQRF27-YVP100M4，YQRF27-YVP63M4，YQRF27-YVP71M4，YQRF27-YVP80M4，YQRF27-YVP90M4，YQRF27-YVPEJ100M4，YQRF27-YVPEJ63M4，YQRF27-YVPEJ71M4，YQRF27-YVPEJ80M4，YQRF27-YVPEJ90M4，JCRF27-AM100M4，JCRF27-AM63M4，JCRF27-AM71M4，JCRF27-AM80M4，JCRF27-AM90M4，JCRF27-Y0.12KW，JCRF27-Y0.18KW，JCRF27-Y0.25KW，JCRF27-Y0.37KW，JCRF27-Y0.55KW，JCRF27-Y0.75KW，JCRF27-Y1.1KW，JCRF27-Y1.5KW，JCRF27-Y100M4，JCRF27-Y2.2KW，JCRF27-Y3KW，JCRF27-Y63M4，JCRF27-Y71M4，JCRF27-Y80M4，JCRF27-Y90M4，JCRF27-YB100M4，JCRF27-YB63M4，JCRF27-YB71M4，JCRF27-YB80M4，JCRF27-YB90M4，JCRF27-YDP100M4，JCRF27-YDP63M4，JCRF27-YDP71M4，JCRF27-YDP80M4，JCRF27-YDP90M4，JCRF27-YE100M4，JCRF27-YE63M4，JCRF27-YE71M4，JCRF27-YE80M4，JCRF27-YE90M4，JCRF27-YEJ100M4，JCRF27-YEJ63M4，JCRF27-YEJ71M4，JCRF27-YEJ80M4，JCRF27-YEJ90M4，JCRF27-YEJB100M4，JCRF27-YEJB63M4，JCRF27-YEJB71M4，JCRF27-YEJB80M4，JCRF27-YEJB90M4，JCRF27-YP100M4，JCRF27-YP63M4，JCRF27-YP71M4，JCRF27-YP80M4，JCRF27-YP90M4，JCRF27-YPB100M4，JCRF27-YPB63M4，JCRF27-YPB71M4，JCRF27-YPB80M4，JCRF27-YPB90M4，JCRF27-YPE100M4，JCRF27-YPE63M4，JCRF27-YPE71M4，JCRF27-YPE80M4，JCRF27-YPE90M4，JCRF27-YS100M4，JCRF27-YS63M4，JCRF27-YS71M4，JCRF27-YS80M4，JCRF27-YS90M4，JCRF27-YVB100M4，JCRF27-YVB63M4，JCRF27-YVB71M4，JCRF27-YVB80M4，JCRF27-YVB90M4，JCRF27-YVP100M4，JCRF27-YVP63M4，JCRF27-YVP71M4，JCRF27-YVP80M4，JCRF27-YVP90M4，JCRF27-YVPEJ100M4，JCRF27-YVPEJ63M4，JCRF27-YVPEJ71M4，JCRF27-YVPEJ80M4，JCRF27-YVPEJ90M4，XDRF27-AM100M4，XDRF27-AM63M4，XDRF27-AM71M4，XDRF27-AM80M4，XDRF27-AM90M4，XDRF27-Y0.12KW，XDRF27-Y0.18KW，XDRF27-Y0.25KW，XDRF27-Y0.37KW，XDRF27-Y0.55KW，XDRF27-Y0.75KW，XDRF27-Y1.1KW，XDRF27-Y1.5KW，XDRF27-Y100M4，XDRF27-Y2.2KW，XDRF27-Y3KW，XDRF27-Y63M4，XDRF27-Y71M4，XDRF27-Y80M4，XDRF27-Y90M4，XDRF27-YB100M4，XDRF27-YB63M4，XDRF27-YB71M4，XDRF27-YB80M4，XDRF27-YB90M4，XDRF27-YDP100M4，XDRF27-YDP63M4，XDRF27-YDP71M4，XDRF27-YDP80M4，XDRF27-YDP90M4，XDRF27-YE100M4，XDRF27-YE63M4，XDRF27-YE71M4，XDRF27-YE80M4，XDRF27-YE90M4，XDRF27-YEJ100M4，XDRF27-YEJ63M4，XDRF27-YEJ71M4，XDRF27-YEJ80M4，XDRF27-YEJ90M4，XDRF27-YEJB100M4，XDRF27-YEJB63M4，XDRF27-YEJB71M4，XDRF27-YEJB80M4，XDRF27-YEJB90M4，XDRF27-YP100M4，XDRF27-YP63M4，XDRF27-YP71M4，XDRF27-YP80M4，XDRF27-YP90M4，XDRF27-YPB100M4，XDRF27-YPB63M4，XDRF27-YPB71M4，XDRF27-YPB80M4，XDRF27-YPB90M4，XDRF27-YPE100M4，XDRF27-YPE63M4，XDRF27-YPE71M4，XDRF27-YPE80M4，XDRF27-YPE90M4，XDRF27-YS100M4，XDRF27-YS63M4，XDRF27-YS71M4，XDRF27-YS80M4，XDRF27-YS90M4，XDRF27-YVB100M4，XDRF27-YVB63M4，XDRF27-YVB71M4，XDRF27-YVB80M4，XDRF27-YVB90M4，XDRF27-YVP100M4，XDRF27-YVP63M4，XDRF27-YVP71M4，XDRF27-YVP80M4，XDRF27-YVP90M4，XDRF27-YVPEJ100M4，XDRF27-YVPEJ63M4，XDRF27-YVPEJ71M4，XDRF27-YVPEJ80M4，XDRF27-YVPEJ90M4，RF29-AM100M4，RF29-AM63M4，RF29-AM71M4，RF29-AM80M4，RF29-AM90M4，RF29-Y0.12KW，RF29-Y0.18KW，RF29-Y0.25KW，RF29-Y0.37KW，RF29-Y0.55KW，RF29-Y0.75KW，RF29-Y1.1KW，RF29-Y1.5KW，RF29-Y100M4，RF29-Y2.2KW，RF29-Y3KW，RF29-Y63M4，RF29-Y71M4，RF29-Y80M4，RF29-Y90M4，RF29-YB100M4，RF29-YB63M4，RF29-YB71M4，RF29-YB80M4，RF29-YB90M4，RF29-YDP100M4，RF29-YDP63M4，RF29-YDP71M4，RF29-YDP80M4，RF29-YDP90M4，RF29-YE100M4，RF29-YE63M4，RF29-YE71M4，RF29-YE80M4，RF29-YE90M4，RF29-YEJ100M4，RF29-YEJ63M4，RF29-YEJ71M4，RF29-YEJ80M4，RF29-YEJ90M4，RF29-YEJB100M4，RF29-YEJB63M4，RF29-YEJB71M4，RF29-YEJB80M4，RF29-YEJB90M4，RF29-YP100M4，RF29-YP63M4，RF29-YP71M4，RF29-YP80M4，RF29-YP90M4，RF29-YPB100M4，RF29-YPB63M4，RF29-YPB71M4，RF29-YPB80M4，RF29-YPB90M4，RF29-YPE100M4，RF29-YPE63M4，RF29-YPE71M4，RF29-YPE80M4，RF29-YPE90M4，RF29-YS100M4，RF29-YS63M4，RF29-YS71M4，RF29-YS80M4，RF29-YS90M4，RF29-YVB100M4，RF29-YVB63M4，RF29-YVB71M4，RF29-YVB80M4，RF29-YVB90M4，RF29-YVP100M4，RF29-YVP63M4，RF29-YVP71M4，RF29-YVP80M4，RF29-YVP90M4，RF29-YVPEJ100M4，RF29-YVPEJ63M4，RF29-YVPEJ71M4，RF29-YVPEJ80M4，RF29-YVPEJ90M4，RWF27-AM100M4，RWF27-AM63M4，RWF27-AM71M4，RWF27-AM80M4，RWF27-AM90M4，RWF27-Y0.12KW，RWF27-Y0.18KW，RWF27-Y0.25KW，RWF27-Y0.37KW，RWF27-Y0.55KW，RWF27-Y0.75KW，RWF27-Y1.1KW，RWF27-Y1.5KW，RWF27-Y100M4，RWF27-Y2.2KW，RWF27-Y3KW，RWF27-Y63M4，RWF27-Y71M4，RWF27-Y80M4，RWF27-Y90M4，RWF27-YB100M4，RWF27-YB63M4，RWF27-YB71M4，RWF27-YB80M4，RWF27-YB90M4，RWF27-YDP100M4，RWF27-YDP63M4，RWF27-YDP71M4，RWF27-YDP80M4，RWF27-YDP90M4，RWF27-YE100M4，RWF27-YE63M4，RWF27-YE71M4，RWF27-YE80M4，RWF27-YE90M4，RWF27-YEJ100M4，RWF27-YEJ63M4，RWF27-YEJ71M4，RWF27-YEJ80M4，RWF27-YEJ90M4，RWF27-YEJB100M4，RWF27-YEJB63M4，RWF27-YEJB71M4，RWF27-YEJB80M4，RWF27-YEJB90M4，RWF27-YP100M4，RWF27-YP63M4，RWF27-YP71M4，RWF27-YP80M4，RWF27-YP90M4，RWF27-YPB100M4，RWF27-YPB63M4，RWF27-YPB71M4，RWF27-YPB80M4，RWF27-YPB90M4，RWF27-YPE100M4，RWF27-YPE63M4，RWF27-YPE71M4，RWF27-YPE80M4，RWF27-YPE90M4，RWF27-YS100M4，RWF27-YS63M4，RWF27-YS71M4，RWF27-YS80M4，RWF27-YS90M4，RWF27-YVB100M4，RWF27-YVB63M4，RWF27-YVB71M4，RWF27-YVB80M4，RWF27-YVB90M4，RWF27-YVP100M4，RWF27-YVP63M4，RWF27-YVP71M4，RWF27-YVP80M4，RWF27-YVP90M4，RWF27-YVPEJ100M4，RWF27-YVPEJ63M4，RWF27-YVPEJ71M4，RWF27-YVPEJ80M4，RWF27-YVPEJ90M4。

RF29減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.hnwshg.com/product/list-rfxiliejiansuji-cn.html

推薦類似型號：R29減速機
