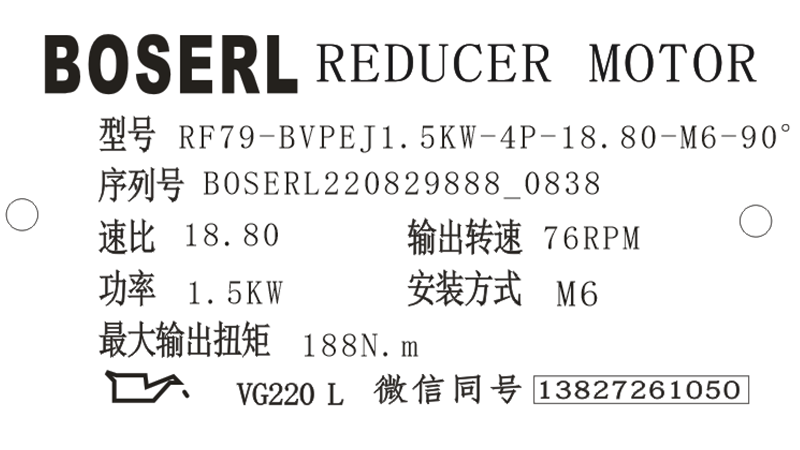

RF79減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RF79減速器選型樣本。

RF79-BVPEJ1.5KW-4P-18.80-M6-90°

RF：系列代號

79：減速機規格代號

B：電機

VPEJ：變頻剎車電機

1.5KW：電機功率

4P：電機級數

18.80：減速機傳動比

M6：減速機安裝位置

90°：接線盒位置

RF79減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動RF79減速器前拆下透氣閥的運輸保險！齒輪減速電機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

RF79減速器安裝操作的正確方法：

RF79減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。立式減速機

RF79減速器的透氣：安裝位置為M1、M3、M5以及M6中的R79、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列RF79減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的RF79減速器，啟動RF79減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。

RF79減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

RF79減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的RF79減速器選型樣本”）。RF系列減速機

RF79減速器型號：

SRF77-AM100M4，SRF77-AM112M4，SRF77-AM132M4，SRF77-AM160M4，SRF77-AM71M4，SRF77-AM80M4，SRF77-AM90M4，SRF77-Y0.18KW，SRF77-Y0.25KW，SRF77-Y0.37KW，SRF77-Y0.55KW，SRF77-Y0.75KW，SRF77-Y1.1KW，SRF77-Y1.5KW，SRF77-Y100M4，SRF77-Y112M4，SRF77-Y11KW，SRF77-Y132M4，SRF77-Y15KW，SRF77-Y160M4，SRF77-Y2.2KW，SRF77-Y3KW，SRF77-Y4KW，SRF77-Y5.5KW，SRF77-Y7.5KW，SRF77-Y71M4，SRF77-Y80M4，SRF77-Y90M4，SRF77-YB100M4，SRF77-YB112M4，SRF77-YB132M4，SRF77-YB160M4，SRF77-YB71M4，SRF77-YB80M4，SRF77-YB90M4，SRF77-YDP100M4，SRF77-YDP112M4，SRF77-YDP132M4，SRF77-YDP160M4，SRF77-YDP71M4，SRF77-YDP80M4，SRF77-YDP90M4，SRF77-YE100M4，SRF77-YE112M4，SRF77-YE132M4，SRF77-YE160M4，SRF77-YE71M4，SRF77-YE80M4，SRF77-YE90M4，SRF77-YEJ100M4，SRF77-YEJ112M4，SRF77-YEJ132M4，SRF77-YEJ160M4，SRF77-YEJ71M4，SRF77-YEJ80M4，SRF77-YEJ90M4，SRF77-YEJB100M4，SRF77-YEJB112M4，SRF77-YEJB132M4，SRF77-YEJB160M4，SRF77-YEJB71M4，SRF77-YEJB80M4，SRF77-YEJB90M4，SRF77-YP100M4，SRF77-YP112M4，SRF77-YP132M4，SRF77-YP160M4，SRF77-YP71M4，SRF77-YP80M4，SRF77-YP90M4，SRF77-YPB100M4，SRF77-YPB112M4，SRF77-YPB132M4，SRF77-YPB160M4，SRF77-YPB71M4，SRF77-YPB80M4，SRF77-YPB90M4，SRF77-YPE100M4，SRF77-YPE112M4，SRF77-YPE132M4，SRF77-YPE160M4，SRF77-YPE71M4，SRF77-YPE80M4，SRF77-YPE90M4，SRF77-YS100M4，SRF77-YS112M4，SRF77-YS132M4，SRF77-YS160M4，SRF77-YS71M4，SRF77-YS80M4，SRF77-YS90M4，SRF77-YVB100M4，SRF77-YVB112M4，SRF77-YVB132M4，SRF77-YVB160M4，SRF77-YVB71M4，SRF77-YVB80M4，SRF77-YVB90M4，SRF77-YVP100M4，SRF77-YVP112M4，SRF77-YVP132M4，SRF77-YVP160M4，SRF77-YVP71M4，SRF77-YVP80M4，SRF77-YVP90M4，SRF77-YVPEJ100M4，SRF77-YVPEJ112M4，SRF77-YVPEJ132M4，SRF77-YVPEJ160M4，SRF77-YVPEJ71M4，SRF77-YVPEJ80M4，SRF77-YVPEJ90M4，NRF77-AM100M4，NRF77-AM112M4，NRF77-AM132M4，NRF77-AM160M4，NRF77-AM71M4，NRF77-AM80M4，NRF77-AM90M4，NRF77-Y0.18KW，NRF77-Y0.25KW，NRF77-Y0.37KW，NRF77-Y0.55KW，NRF77-Y0.75KW，NRF77-Y1.1KW，NRF77-Y1.5KW，NRF77-Y100M4，NRF77-Y112M4，NRF77-Y11KW，NRF77-Y132M4，NRF77-Y15KW，NRF77-Y160M4，NRF77-Y2.2KW，NRF77-Y3KW，NRF77-Y4KW，NRF77-Y5.5KW，NRF77-Y7.5KW，NRF77-Y71M4，NRF77-Y80M4，NRF77-Y90M4，NRF77-YB100M4，NRF77-YB112M4，NRF77-YB132M4，NRF77-YB160M4，NRF77-YB71M4，NRF77-YB80M4，NRF77-YB90M4，NRF77-YDP100M4，NRF77-YDP112M4，NRF77-YDP132M4，NRF77-YDP160M4，NRF77-YDP71M4，NRF77-YDP80M4，NRF77-YDP90M4，NRF77-YE100M4，NRF77-YE112M4，NRF77-YE132M4，NRF77-YE160M4，NRF77-YE71M4，NRF77-YE80M4，NRF77-YE90M4，NRF77-YEJ100M4，NRF77-YEJ112M4，NRF77-YEJ132M4，NRF77-YEJ160M4，NRF77-YEJ71M4，NRF77-YEJ80M4，NRF77-YEJ90M4，NRF77-YEJB100M4，NRF77-YEJB112M4，NRF77-YEJB132M4，NRF77-YEJB160M4，NRF77-YEJB71M4，NRF77-YEJB80M4，NRF77-YEJB90M4，NRF77-YP100M4，NRF77-YP112M4，NRF77-YP132M4，NRF77-YP160M4，NRF77-YP71M4，NRF77-YP80M4，NRF77-YP90M4，NRF77-YPB100M4，NRF77-YPB112M4，NRF77-YPB132M4，NRF77-YPB160M4，NRF77-YPB71M4，NRF77-YPB80M4，NRF77-YPB90M4，NRF77-YPE100M4，NRF77-YPE112M4，NRF77-YPE132M4，NRF77-YPE160M4，NRF77-YPE71M4，NRF77-YPE80M4，NRF77-YPE90M4，NRF77-YS100M4，NRF77-YS112M4，NRF77-YS132M4，NRF77-YS160M4，NRF77-YS71M4，NRF77-YS80M4，NRF77-YS90M4，NRF77-YVB100M4，NRF77-YVB112M4，NRF77-YVB132M4，NRF77-YVB160M4，NRF77-YVB71M4，NRF77-YVB80M4，NRF77-YVB90M4，NRF77-YVP100M4，NRF77-YVP112M4，NRF77-YVP132M4，NRF77-YVP160M4，NRF77-YVP71M4，NRF77-YVP80M4，NRF77-YVP90M4，NRF77-YVPEJ100M4，NRF77-YVPEJ112M4，NRF77-YVPEJ132M4，NRF77-YVPEJ160M4，NRF77-YVPEJ71M4，NRF77-YVPEJ80M4，NRF77-YVPEJ90M4，GRF79-AM100M4，GRF79-AM112M4，GRF79-AM132M4，GRF79-AM160M4，GRF79-AM71M4，GRF79-AM80M4，GRF79-AM90M4，GRF79-Y0.18KW，GRF79-Y0.25KW，GRF79-Y0.37KW，GRF79-Y0.55KW，GRF79-Y0.75KW，GRF79-Y1.1KW，GRF79-Y1.5KW，GRF79-Y100M4，GRF79-Y112M4，GRF79-Y11KW，GRF79-Y132M4，GRF79-Y15KW，GRF79-Y160M4，GRF79-Y2.2KW，GRF79-Y3KW，GRF79-Y4KW，GRF79-Y5.5KW，GRF79-Y7.5KW，GRF79-Y71M4，GRF79-Y80M4，GRF79-Y90M4，GRF79-YB100M4，GRF79-YB112M4，GRF79-YB132M4，GRF79-YB160M4，GRF79-YB71M4，GRF79-YB80M4，GRF79-YB90M4，GRF79-YDP100M4，GRF79-YDP112M4，GRF79-YDP132M4，GRF79-YDP160M4，GRF79-YDP71M4，GRF79-YDP80M4，GRF79-YDP90M4，GRF79-YE100M4，GRF79-YE112M4，GRF79-YE132M4，GRF79-YE160M4，GRF79-YE71M4，GRF79-YE80M4，GRF79-YE90M4，GRF79-YEJ100M4，GRF79-YEJ112M4，GRF79-YEJ132M4，GRF79-YEJ160M4，GRF79-YEJ71M4，GRF79-YEJ80M4，GRF79-YEJ90M4，GRF79-YEJB100M4，GRF79-YEJB112M4，GRF79-YEJB132M4，GRF79-YEJB160M4，GRF79-YEJB71M4，GRF79-YEJB80M4，GRF79-YEJB90M4，GRF79-YP100M4，GRF79-YP112M4，GRF79-YP132M4，GRF79-YP160M4，GRF79-YP71M4，GRF79-YP80M4，GRF79-YP90M4，GRF79-YPB100M4，GRF79-YPB112M4，GRF79-YPB132M4，GRF79-YPB160M4，GRF79-YPB71M4，GRF79-YPB80M4，GRF79-YPB90M4，GRF79-YPE100M4，GRF79-YPE112M4，GRF79-YPE132M4，GRF79-YPE160M4，GRF79-YPE71M4，GRF79-YPE80M4，GRF79-YPE90M4，GRF79-YS100M4，GRF79-YS112M4，GRF79-YS132M4，GRF79-YS160M4，GRF79-YS71M4，GRF79-YS80M4，GRF79-YS90M4，GRF79-YVB100M4，GRF79-YVB112M4，GRF79-YVB132M4，GRF79-YVB160M4，GRF79-YVB71M4，GRF79-YVB80M4，GRF79-YVB90M4，GRF79-YVP100M4，GRF79-YVP112M4，GRF79-YVP132M4，GRF79-YVP160M4，GRF79-YVP71M4，GRF79-YVP80M4，GRF79-YVP90M4，GRF79-YVPEJ100M4，GRF79-YVPEJ112M4，GRF79-YVPEJ132M4，GRF79-YVPEJ160M4，GRF79-YVPEJ71M4，GRF79-YVPEJ80M4，GRF79-YVPEJ90M4，ARF77-AM100M4，ARF77-AM112M4，ARF77-AM132M4，ARF77-AM160M4，ARF77-AM71M4，ARF77-AM80M4，ARF77-AM90M4，ARF77-Y0.18KW，ARF77-Y0.25KW，ARF77-Y0.37KW，ARF77-Y0.55KW，ARF77-Y0.75KW，ARF77-Y1.1KW，ARF77-Y1.5KW，ARF77-Y100M4，ARF77-Y112M4，ARF77-Y11KW，ARF77-Y132M4，ARF77-Y15KW，ARF77-Y160M4，ARF77-Y2.2KW，ARF77-Y3KW，ARF77-Y4KW，ARF77-Y5.5KW，ARF77-Y7.5KW，ARF77-Y71M4，ARF77-Y80M4，ARF77-Y90M4，ARF77-YB100M4，ARF77-YB112M4，ARF77-YB132M4，ARF77-YB160M4，ARF77-YB71M4，ARF77-YB80M4，ARF77-YB90M4，ARF77-YDP100M4，ARF77-YDP112M4，ARF77-YDP132M4，ARF77-YDP160M4，ARF77-YDP71M4，ARF77-YDP80M4，ARF77-YDP90M4，ARF77-YE100M4，ARF77-YE112M4，ARF77-YE132M4，ARF77-YE160M4，ARF77-YE71M4，ARF77-YE80M4，ARF77-YE90M4，ARF77-YEJ100M4，ARF77-YEJ112M4，ARF77-YEJ132M4，ARF77-YEJ160M4，ARF77-YEJ71M4，ARF77-YEJ80M4，ARF77-YEJ90M4，ARF77-YEJB100M4，ARF77-YEJB112M4，ARF77-YEJB132M4，ARF77-YEJB160M4，ARF77-YEJB71M4，ARF77-YEJB80M4，ARF77-YEJB90M4，ARF77-YP100M4，ARF77-YP112M4，ARF77-YP132M4，ARF77-YP160M4，ARF77-YP71M4，ARF77-YP80M4，ARF77-YP90M4，ARF77-YPB100M4，ARF77-YPB112M4，ARF77-YPB132M4，ARF77-YPB160M4，ARF77-YPB71M4，ARF77-YPB80M4，ARF77-YPB90M4，ARF77-YPE100M4，ARF77-YPE112M4，ARF77-YPE132M4，ARF77-YPE160M4，ARF77-YPE71M4，ARF77-YPE80M4，ARF77-YPE90M4，ARF77-YS100M4，ARF77-YS112M4，ARF77-YS132M4，ARF77-YS160M4，ARF77-YS71M4，ARF77-YS80M4，ARF77-YS90M4，ARF77-YVB100M4，ARF77-YVB112M4，ARF77-YVB132M4，ARF77-YVB160M4，ARF77-YVB71M4，ARF77-YVB80M4，ARF77-YVB90M4，ARF77-YVP100M4，ARF77-YVP112M4，ARF77-YVP132M4，ARF77-YVP160M4，ARF77-YVP71M4，ARF77-YVP80M4，ARF77-YVP90M4，ARF77-YVPEJ100M4，ARF77-YVPEJ112M4，ARF77-YVPEJ132M4，ARF77-YVPEJ160M4，ARF77-YVPEJ71M4，ARF77-YVPEJ80M4，ARF77-YVPEJ90M4，WRF77-AM100M4，WRF77-AM112M4，WRF77-AM132M4，WRF77-AM160M4，WRF77-AM71M4，WRF77-AM80M4，WRF77-AM90M4，WRF77-Y0.18KW，WRF77-Y0.25KW，WRF77-Y0.37KW，WRF77-Y0.55KW，WRF77-Y0.75KW，WRF77-Y1.1KW，WRF77-Y1.5KW，WRF77-Y100M4，WRF77-Y112M4，WRF77-Y11KW，WRF77-Y132M4，WRF77-Y15KW，WRF77-Y160M4，WRF77-Y2.2KW，WRF77-Y3KW，WRF77-Y4KW，WRF77-Y5.5KW，WRF77-Y7.5KW，WRF77-Y71M4，WRF77-Y80M4，WRF77-Y90M4，WRF77-YB100M4，WRF77-YB112M4，WRF77-YB132M4，WRF77-YB160M4，WRF77-YB71M4，WRF77-YB80M4，WRF77-YB90M4，WRF77-YDP100M4，WRF77-YDP112M4，WRF77-YDP132M4，WRF77-YDP160M4，WRF77-YDP71M4，WRF77-YDP80M4，WRF77-YDP90M4，WRF77-YE100M4，WRF77-YE112M4，WRF77-YE132M4，WRF77-YE160M4，WRF77-YE71M4，WRF77-YE80M4，WRF77-YE90M4，WRF77-YEJ100M4，WRF77-YEJ112M4，WRF77-YEJ132M4，WRF77-YEJ160M4，WRF77-YEJ71M4，WRF77-YEJ80M4，WRF77-YEJ90M4，WRF77-YEJB100M4，WRF77-YEJB112M4，WRF77-YEJB132M4，WRF77-YEJB160M4，WRF77-YEJB71M4，WRF77-YEJB80M4，WRF77-YEJB90M4，WRF77-YP100M4，WRF77-YP112M4，WRF77-YP132M4，WRF77-YP160M4，WRF77-YP71M4，WRF77-YP80M4，WRF77-YP90M4，WRF77-YPB100M4，WRF77-YPB112M4，WRF77-YPB132M4，WRF77-YPB160M4，WRF77-YPB71M4，WRF77-YPB80M4，WRF77-YPB90M4，WRF77-YPE100M4，WRF77-YPE112M4，WRF77-YPE132M4，WRF77-YPE160M4，WRF77-YPE71M4，WRF77-YPE80M4，WRF77-YPE90M4，WRF77-YS100M4，WRF77-YS112M4，WRF77-YS132M4，WRF77-YS160M4，WRF77-YS71M4，WRF77-YS80M4，WRF77-YS90M4，WRF77-YVB100M4，WRF77-YVB112M4，WRF77-YVB132M4，WRF77-YVB160M4，WRF77-YVB71M4，WRF77-YVB80M4，WRF77-YVB90M4，WRF77-YVP100M4，WRF77-YVP112M4，WRF77-YVP132M4，WRF77-YVP160M4，WRF77-YVP71M4，WRF77-YVP80M4，WRF77-YVP90M4，WRF77-YVPEJ100M4，WRF77-YVPEJ112M4，WRF77-YVPEJ132M4，WRF77-YVPEJ160M4，WRF77-YVPEJ71M4，WRF77-YVPEJ80M4，WRF77-YVPEJ90M4，RF77SF80，RF77SF90，RF77SF100，RF77SF112，RF77SF115，RF77SF140，RF77SF160，RF77SF190。

RF79減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.hnwshg.com/product/list-rfxiliejiansuji-cn.html

推薦類似型號：R79減速機
