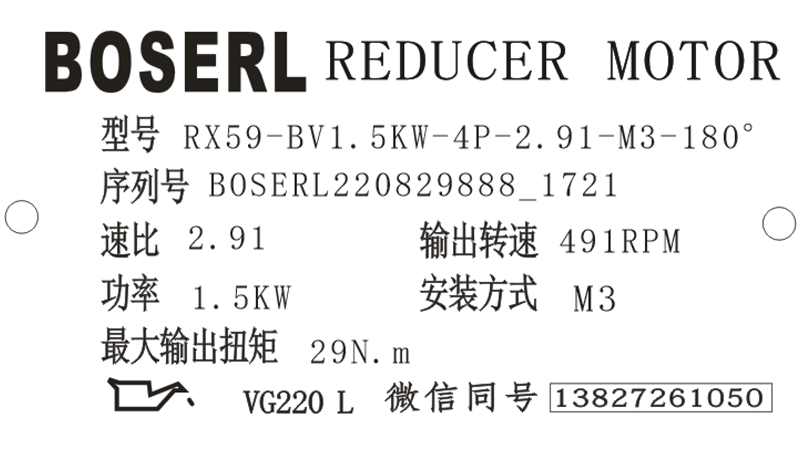

RX59減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RX59減速器選型樣本。

RX59-BV1.5KW-4P-2.91-M3-180°

RX：系列代號

59：減速機規格代號

BV：電機

1.5KW：電機功率

4P：電機級數

2.91：減速機傳動比

M3：減速機安裝位置

180°：接線盒位置

RX59減速器逆止器安裝：

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。電機減速機一體機

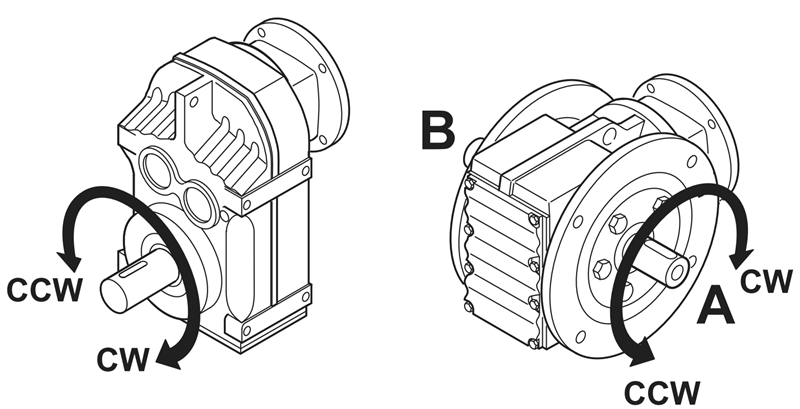

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。

RX59減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

RX59減速器潤滑油檢查：

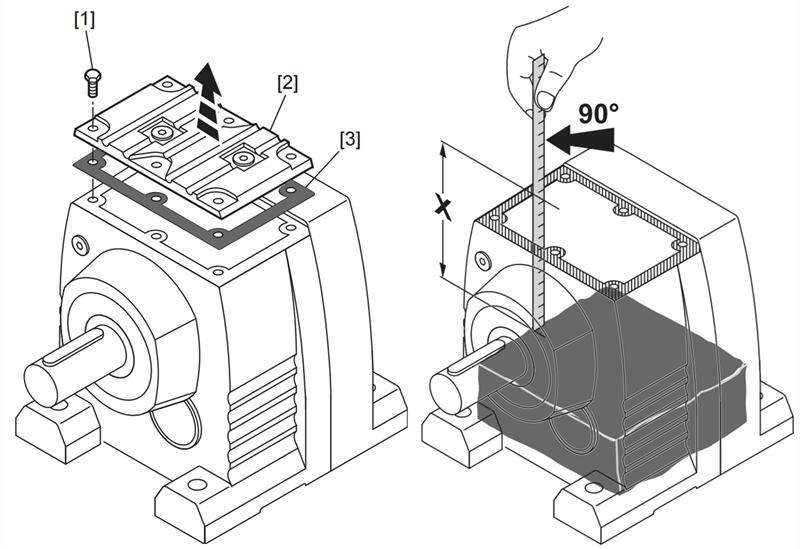

通過安裝蓋檢查油位：對于無油位孔的減速器可以通過打開安裝蓋來檢查油位。請按以下步驟進行操作：按照下列安裝位置放置減速器以便安裝蓋位于頂部；松開安全蓋2的螺栓1，并卸掉安裝蓋2及蓋上的密封圈3（見下圖）；確定油位與減速器箱體密封面的垂直間距“X”（見下圖）。齒輪減速電機

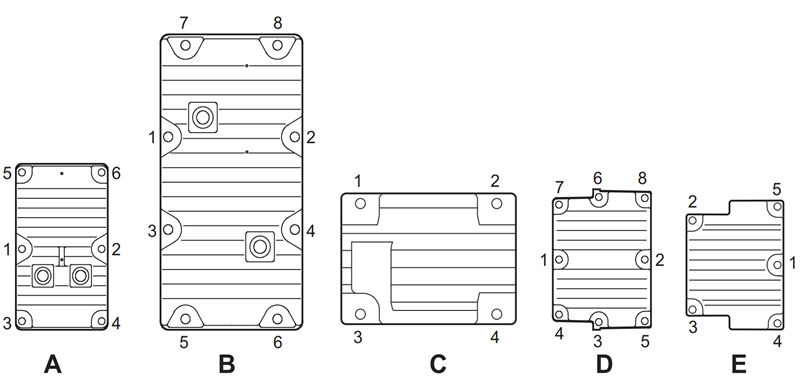

RX59減速器油位檢查完畢后密封RX59減速器：重新裝上安裝蓋的密封圈；注意，密封面要保持清潔、干燥；裝上安裝蓋；根據下表中的標稱擰緊扭矩按照圖中標明的順序由內向外依次擰緊蓋上的螺栓；重復這一步驟多次，直至螺栓完全擰緊；只能采用氣動扳手或力矩扳手，避免安裝時對蓋板產生破壞，避免用力過猛或使用強沖擊的工具。臥式減速機

RX59減速器型號：

NRX57-AM100M4，NRX57-AM112M4，NRX57-AM132M4，NRX57-AM63M4，NRX57-AM71M4，NRX57-AM80M4，NRX57-AM90M4，NRX57-Y0.12KW，NRX57-Y0.18KW，NRX57-Y0.25KW，NRX57-Y0.37KW，NRX57-Y0.55KW，NRX57-Y0.75KW，NRX57-Y1.1KW，NRX57-Y1.5KW，NRX57-Y100M4，NRX57-Y112M4，NRX57-Y132M4，NRX57-Y2.2KW，NRX57-Y3KW，NRX57-Y4KW，NRX57-Y5.5KW，NRX57-Y63M4，NRX57-Y7.5KW，NRX57-Y71M4，NRX57-Y80M4，NRX57-Y90M4，NRX57-YB100M4，NRX57-YB112M4，NRX57-YB132M4，NRX57-YB63M4，NRX57-YB71M4，NRX57-YB80M4，NRX57-YB90M4，NRX57-YDP100M4，NRX57-YDP112M4，NRX57-YDP132M4，NRX57-YDP63M4，NRX57-YDP71M4，NRX57-YDP80M4，NRX57-YDP90M4，NRX57-YE100M4，NRX57-YE112M4，NRX57-YE132M4，NRX57-YE63M4，NRX57-YE71M4，NRX57-YE80M4，NRX57-YE90M4，NRX57-YEJ100M4，NRX57-YEJ112M4，NRX57-YEJ132M4，NRX57-YEJ63M4，NRX57-YEJ71M4，NRX57-YEJ80M4，NRX57-YEJ90M4，NRX57-YEJB100M4，NRX57-YEJB112M4，NRX57-YEJB132M4，NRX57-YEJB63M4，NRX57-YEJB71M4，NRX57-YEJB80M4，NRX57-YEJB90M4，NRX57-YP100M4，NRX57-YP112M4，NRX57-YP132M4，NRX57-YP63M4，NRX57-YP71M4，NRX57-YP80M4，NRX57-YP90M4，NRX57-YPB100M4，NRX57-YPB112M4，NRX57-YPB132M4，NRX57-YPB63M4，NRX57-YPB71M4，NRX57-YPB80M4，NRX57-YPB90M4，NRX57-YPE100M4，NRX57-YPE112M4，NRX57-YPE132M4，NRX57-YPE63M4，NRX57-YPE71M4，NRX57-YPE80M4，NRX57-YPE90M4，NRX57-YS100M4，NRX57-YS112M4，NRX57-YS132M4，NRX57-YS63M4，NRX57-YS71M4，NRX57-YS80M4，NRX57-YS90M4，NRX57-YVB100M4，NRX57-YVB112M4，NRX57-YVB132M4，NRX57-YVB63M4，NRX57-YVB71M4，NRX57-YVB80M4，NRX57-YVB90M4，NRX57-YVP100M4，NRX57-YVP112M4，NRX57-YVP132M4，NRX57-YVP63M4，NRX57-YVP71M4，NRX57-YVP80M4，NRX57-YVP90M4，NRX57-YVPEJ100M4，NRX57-YVPEJ112M4，NRX57-YVPEJ132M4，NRX57-YVPEJ63M4，NRX57-YVPEJ71M4，NRX57-YVPEJ80M4，NRX57-YVPEJ90M4，GRX59-AM100M4，GRX59-AM112M4，GRX59-AM132M4，GRX59-AM63M4，GRX59-AM71M4，GRX59-AM80M4，GRX59-AM90M4，GRX59-Y0.12KW，GRX59-Y0.18KW，GRX59-Y0.25KW，GRX59-Y0.37KW，GRX59-Y0.55KW，GRX59-Y0.75KW，GRX59-Y1.1KW，GRX59-Y1.5KW，GRX59-Y100M4，GRX59-Y112M4，GRX59-Y132M4，GRX59-Y2.2KW，GRX59-Y3KW，GRX59-Y4KW，GRX59-Y5.5KW，GRX59-Y63M4，GRX59-Y7.5KW，GRX59-Y71M4，GRX59-Y80M4，GRX59-Y90M4，GRX59-YB100M4，GRX59-YB112M4，GRX59-YB132M4，GRX59-YB63M4，GRX59-YB71M4，GRX59-YB80M4，GRX59-YB90M4，GRX59-YDP100M4，GRX59-YDP112M4，GRX59-YDP132M4，GRX59-YDP63M4，GRX59-YDP71M4，GRX59-YDP80M4，GRX59-YDP90M4，GRX59-YE100M4，GRX59-YE112M4，GRX59-YE132M4，GRX59-YE63M4，GRX59-YE71M4，GRX59-YE80M4，GRX59-YE90M4，GRX59-YEJ100M4，GRX59-YEJ112M4，GRX59-YEJ132M4，GRX59-YEJ63M4，GRX59-YEJ71M4，GRX59-YEJ80M4，GRX59-YEJ90M4，GRX59-YEJB100M4，GRX59-YEJB112M4，GRX59-YEJB132M4，GRX59-YEJB63M4，GRX59-YEJB71M4，GRX59-YEJB80M4，GRX59-YEJB90M4，GRX59-YP100M4，GRX59-YP112M4，GRX59-YP132M4，GRX59-YP63M4，GRX59-YP71M4，GRX59-YP80M4，GRX59-YP90M4，GRX59-YPB100M4，GRX59-YPB112M4，GRX59-YPB132M4，GRX59-YPB63M4，GRX59-YPB71M4，GRX59-YPB80M4，GRX59-YPB90M4，GRX59-YPE100M4，GRX59-YPE112M4，GRX59-YPE132M4，GRX59-YPE63M4，GRX59-YPE71M4，GRX59-YPE80M4，GRX59-YPE90M4，GRX59-YS100M4，GRX59-YS112M4，GRX59-YS132M4，GRX59-YS63M4，GRX59-YS71M4，GRX59-YS80M4，GRX59-YS90M4，GRX59-YVB100M4，GRX59-YVB112M4，GRX59-YVB132M4，GRX59-YVB63M4，GRX59-YVB71M4，GRX59-YVB80M4，GRX59-YVB90M4，GRX59-YVP100M4，GRX59-YVP112M4，GRX59-YVP132M4，GRX59-YVP63M4，GRX59-YVP71M4，GRX59-YVP80M4，GRX59-YVP90M4，GRX59-YVPEJ100M4，GRX59-YVPEJ112M4，GRX59-YVPEJ132M4，GRX59-YVPEJ63M4，GRX59-YVPEJ71M4，GRX59-YVPEJ80M4，GRX59-YVPEJ90M4，ARX57-AM100M4，ARX57-AM112M4，ARX57-AM132M4，ARX57-AM63M4，ARX57-AM71M4，ARX57-AM80M4，ARX57-AM90M4，ARX57-Y0.12KW，ARX57-Y0.18KW，ARX57-Y0.25KW，ARX57-Y0.37KW，ARX57-Y0.55KW，ARX57-Y0.75KW，ARX57-Y1.1KW，ARX57-Y1.5KW，ARX57-Y100M4，ARX57-Y112M4，ARX57-Y132M4，ARX57-Y2.2KW，ARX57-Y3KW，ARX57-Y4KW，ARX57-Y5.5KW，ARX57-Y63M4，ARX57-Y7.5KW，ARX57-Y71M4，ARX57-Y80M4，ARX57-Y90M4，ARX57-YB100M4，ARX57-YB112M4，ARX57-YB132M4，ARX57-YB63M4，ARX57-YB71M4，ARX57-YB80M4，ARX57-YB90M4，ARX57-YDP100M4，ARX57-YDP112M4，ARX57-YDP132M4，ARX57-YDP63M4，ARX57-YDP71M4，ARX57-YDP80M4，ARX57-YDP90M4，ARX57-YE100M4，ARX57-YE112M4，ARX57-YE132M4，ARX57-YE63M4，ARX57-YE71M4，ARX57-YE80M4，ARX57-YE90M4，ARX57-YEJ100M4，ARX57-YEJ112M4，ARX57-YEJ132M4，ARX57-YEJ63M4，ARX57-YEJ71M4，ARX57-YEJ80M4，ARX57-YEJ90M4，ARX57-YEJB100M4，ARX57-YEJB112M4，ARX57-YEJB132M4，ARX57-YEJB63M4，ARX57-YEJB71M4，ARX57-YEJB80M4，ARX57-YEJB90M4，ARX57-YP100M4，ARX57-YP112M4，ARX57-YP132M4，ARX57-YP63M4，ARX57-YP71M4，ARX57-YP80M4，ARX57-YP90M4，ARX57-YPB100M4，ARX57-YPB112M4，ARX57-YPB132M4，ARX57-YPB63M4，ARX57-YPB71M4，ARX57-YPB80M4，ARX57-YPB90M4，ARX57-YPE100M4，ARX57-YPE112M4，ARX57-YPE132M4，ARX57-YPE63M4，ARX57-YPE71M4，ARX57-YPE80M4，ARX57-YPE90M4，ARX57-YS100M4，ARX57-YS112M4，ARX57-YS132M4，ARX57-YS63M4，ARX57-YS71M4，ARX57-YS80M4，ARX57-YS90M4，ARX57-YVB100M4，ARX57-YVB112M4，ARX57-YVB132M4，ARX57-YVB63M4，ARX57-YVB71M4，ARX57-YVB80M4，ARX57-YVB90M4，ARX57-YVP100M4，ARX57-YVP112M4，ARX57-YVP132M4，ARX57-YVP63M4，ARX57-YVP71M4，ARX57-YVP80M4，ARX57-YVP90M4，ARX57-YVPEJ100M4，ARX57-YVPEJ112M4，ARX57-YVPEJ132M4，ARX57-YVPEJ63M4，ARX57-YVPEJ71M4，ARX57-YVPEJ80M4，ARX57-YVPEJ90M4，WRX57-AM100M4，WRX57-AM112M4，WRX57-AM132M4，WRX57-AM63M4，WRX57-AM71M4，WRX57-AM80M4，WRX57-AM90M4，WRX57-Y0.12KW，WRX57-Y0.18KW，WRX57-Y0.25KW，WRX57-Y0.37KW，WRX57-Y0.55KW，WRX57-Y0.75KW，WRX57-Y1.1KW，WRX57-Y1.5KW，WRX57-Y100M4，WRX57-Y112M4，WRX57-Y132M4，WRX57-Y2.2KW，WRX57-Y3KW，WRX57-Y4KW，WRX57-Y5.5KW，WRX57-Y63M4，WRX57-Y7.5KW，WRX57-Y71M4，WRX57-Y80M4，WRX57-Y90M4，WRX57-YB100M4，WRX57-YB112M4，WRX57-YB132M4，WRX57-YB63M4，WRX57-YB71M4，WRX57-YB80M4，WRX57-YB90M4，WRX57-YDP100M4，WRX57-YDP112M4，WRX57-YDP132M4，WRX57-YDP63M4，WRX57-YDP71M4，WRX57-YDP80M4，WRX57-YDP90M4，WRX57-YE100M4，WRX57-YE112M4，WRX57-YE132M4，WRX57-YE63M4，WRX57-YE71M4，WRX57-YE80M4，WRX57-YE90M4，WRX57-YEJ100M4，WRX57-YEJ112M4，WRX57-YEJ132M4，WRX57-YEJ63M4，WRX57-YEJ71M4，WRX57-YEJ80M4，WRX57-YEJ90M4，WRX57-YEJB100M4，WRX57-YEJB112M4，WRX57-YEJB132M4，WRX57-YEJB63M4，WRX57-YEJB71M4，WRX57-YEJB80M4，WRX57-YEJB90M4，WRX57-YP100M4，WRX57-YP112M4，WRX57-YP132M4，WRX57-YP63M4，WRX57-YP71M4，WRX57-YP80M4，WRX57-YP90M4，WRX57-YPB100M4，WRX57-YPB112M4，WRX57-YPB132M4，WRX57-YPB63M4，WRX57-YPB71M4，WRX57-YPB80M4，WRX57-YPB90M4，WRX57-YPE100M4，WRX57-YPE112M4，WRX57-YPE132M4，WRX57-YPE63M4，WRX57-YPE71M4，WRX57-YPE80M4，WRX57-YPE90M4，WRX57-YS100M4，WRX57-YS112M4，WRX57-YS132M4，WRX57-YS63M4，WRX57-YS71M4，WRX57-YS80M4，WRX57-YS90M4，WRX57-YVB100M4，WRX57-YVB112M4，WRX57-YVB132M4，WRX57-YVB63M4，WRX57-YVB71M4，WRX57-YVB80M4，WRX57-YVB90M4，WRX57-YVP100M4，WRX57-YVP112M4，WRX57-YVP132M4，WRX57-YVP63M4，WRX57-YVP71M4，WRX57-YVP80M4，WRX57-YVP90M4，WRX57-YVPEJ100M4，WRX57-YVPEJ112M4，WRX57-YVPEJ132M4，WRX57-YVPEJ63M4，WRX57-YVPEJ71M4，WRX57-YVPEJ80M4，WRX57-YVPEJ90M4，SRX57-AM100M4，SRX57-AM112M4，SRX57-AM132M4，SRX57-AM63M4，SRX57-AM71M4，SRX57-AM80M4，SRX57-AM90M4，SRX57-Y0.12KW，SRX57-Y0.18KW，SRX57-Y0.25KW，SRX57-Y0.37KW，SRX57-Y0.55KW，SRX57-Y0.75KW，SRX57-Y1.1KW，SRX57-Y1.5KW，SRX57-Y100M4，SRX57-Y112M4，SRX57-Y132M4，SRX57-Y2.2KW，SRX57-Y3KW，SRX57-Y4KW，SRX57-Y5.5KW，SRX57-Y63M4，SRX57-Y7.5KW，SRX57-Y71M4，SRX57-Y80M4，SRX57-Y90M4，SRX57-YB100M4，SRX57-YB112M4，SRX57-YB132M4，SRX57-YB63M4，SRX57-YB71M4，SRX57-YB80M4，SRX57-YB90M4，SRX57-YDP100M4，SRX57-YDP112M4，SRX57-YDP132M4，SRX57-YDP63M4，SRX57-YDP71M4，SRX57-YDP80M4，SRX57-YDP90M4，SRX57-YE100M4，SRX57-YE112M4，SRX57-YE132M4，SRX57-YE63M4，SRX57-YE71M4，SRX57-YE80M4，SRX57-YE90M4，SRX57-YEJ100M4，SRX57-YEJ112M4，SRX57-YEJ132M4，SRX57-YEJ63M4，SRX57-YEJ71M4，SRX57-YEJ80M4，SRX57-YEJ90M4，SRX57-YEJB100M4，SRX57-YEJB112M4，SRX57-YEJB132M4，SRX57-YEJB63M4，SRX57-YEJB71M4，SRX57-YEJB80M4，SRX57-YEJB90M4，SRX57-YP100M4，SRX57-YP112M4，SRX57-YP132M4，SRX57-YP63M4，SRX57-YP71M4，SRX57-YP80M4，SRX57-YP90M4，SRX57-YPB100M4，SRX57-YPB112M4，SRX57-YPB132M4，SRX57-YPB63M4，SRX57-YPB71M4，SRX57-YPB80M4，SRX57-YPB90M4，SRX57-YPE100M4，SRX57-YPE112M4，SRX57-YPE132M4，SRX57-YPE63M4，SRX57-YPE71M4，SRX57-YPE80M4，SRX57-YPE90M4，SRX57-YS100M4，SRX57-YS112M4，SRX57-YS132M4，SRX57-YS63M4，SRX57-YS71M4，SRX57-YS80M4，SRX57-YS90M4，SRX57-YVB100M4，SRX57-YVB112M4，SRX57-YVB132M4，SRX57-YVB63M4，SRX57-YVB71M4，SRX57-YVB80M4，SRX57-YVB90M4，SRX57-YVP100M4，SRX57-YVP112M4，SRX57-YVP132M4，SRX57-YVP63M4，SRX57-YVP71M4，SRX57-YVP80M4，SRX57-YVP90M4，SRX57-YVPEJ100M4，SRX57-YVPEJ112M4，SRX57-YVPEJ132M4，SRX57-YVPEJ63M4，SRX57-YVPEJ71M4，SRX57-YVPEJ80M4，SRX57-YVPEJ90M4，RX57SF80，RX57SF90，RX57SF100，RX57SF112，RX57SF115，RX57SF140，RX57SF160，RX57SF190。
