FA159減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FA159減速器選型樣本。

FA159-YB30KW-4P-68.28-M3-180°

FA：系列代號

159：減速機規格代號

YB：電機

30KW：電機功率

4P：電機級數

68.28：減速機傳動比

M3：減速機安裝位置

180°：接線盒位置

FA159減速器逆止器安裝：

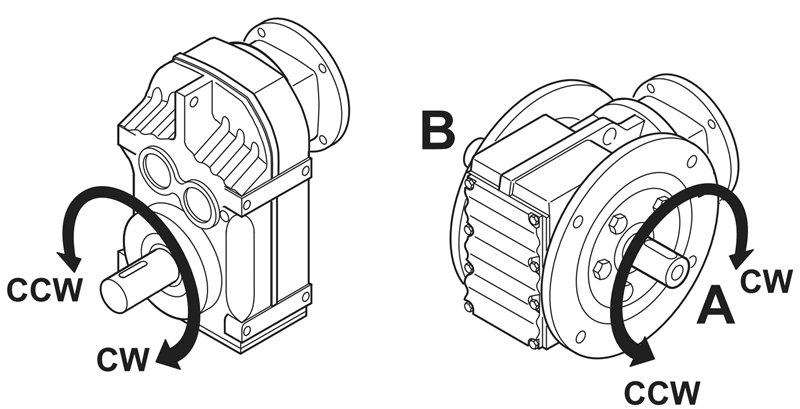

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。平行軸斜齒輪減速機

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

FA159減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。分體電機減速機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

FA159減速器潤滑油檢查：

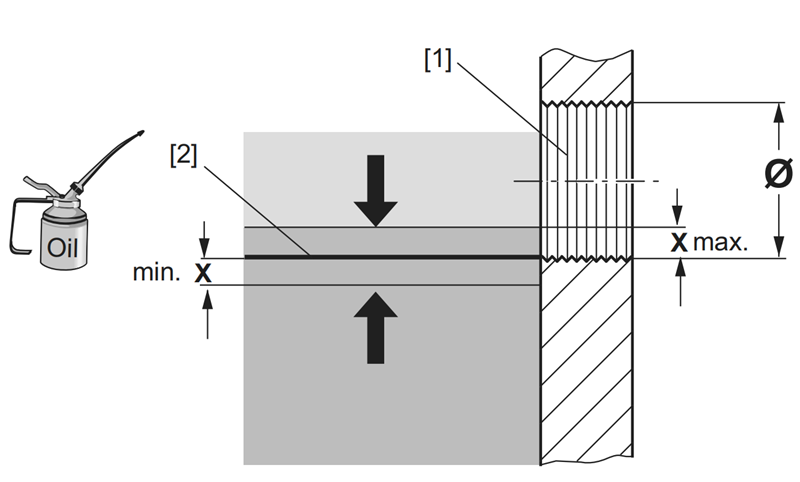

將一個容器置于油位檢查螺栓的下方；慢慢旋出油位檢查螺栓。由于最大許可注油高度超過了油位孔的下緣，因此在旋出螺栓時可能有少量油漏出；據下圖及相關表格檢查油位。

若油位過低則操作如下：旋入透氣螺栓；將同類潤滑油注入透氣孔直至油位檢查孔的下緣；重新旋入透氣螺塞。

重新旋入油位檢查螺栓，通過放油螺栓檢查油質。齒輪減速電機

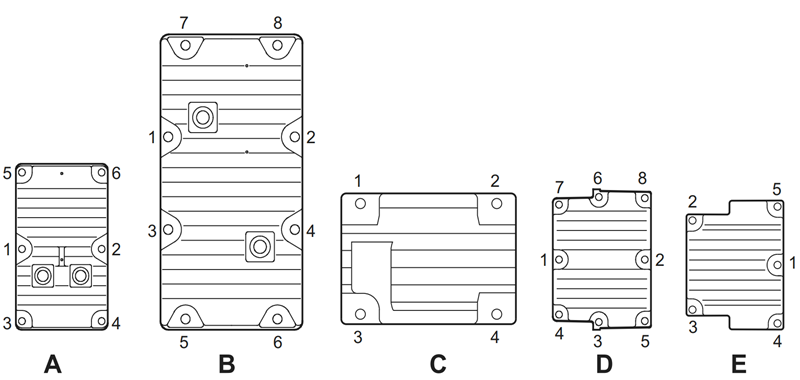

重新裝上安裝蓋，根據下表中的標稱擰緊扭矩按照圖中標明的順序由內向外依次擰緊蓋上的螺栓；重復這一步驟多次，直至螺栓完全擰緊；只能采用氣動扳手或力矩扳手，避免安裝時對蓋板產生破壞，避免用力過猛或使用強沖擊的工具。

FA159減速器型號：

YQFA157-Y110KW，YQFA157-Y11KW，YQFA157-Y132KW，YQFA157-Y15KW，YQFA157-Y160M4，YQFA157-Y18.5KW，YQFA157-Y180M4，YQFA157-Y200M4，YQFA157-Y225M4，YQFA157-Y22KW，YQFA157-Y250M4，YQFA157-Y280M4，YQFA157-Y30KW，YQFA157-Y315M4，YQFA157-Y37KW，YQFA157-Y45KW，YQFA157-Y55KW，YQFA157-Y75KW，YQFA157-Y90KW，YQFA157-YB160M4，YQFA157-YB180M4，YQFA157-YB200M4，YQFA157-YB225M4，YQFA157-YB250M4，YQFA157-YB280M4，YQFA157-YB315M4，YQFA157-YDP160M4，YQFA157-YDP180M4，YQFA157-YDP200M4，YQFA157-YDP225M4，YQFA157-YDP250M4，YQFA157-YDP280M4，YQFA157-YDP315M4，YQFA157-YE160M4，YQFA157-YE180M4，YQFA157-YE200M4，YQFA157-YE225M4，YQFA157-YE250M4，YQFA157-YE280M4，YQFA157-YE315M4，YQFA157-YEJ160M4，YQFA157-YEJ180M4，YQFA157-YEJ200M4，YQFA157-YEJ225M4，YQFA157-YEJ250M4，YQFA157-YEJ280M4，YQFA157-YEJ315M4，YQFA157-YEJB160M4，YQFA157-YEJB180M4，YQFA157-YEJB200M4，YQFA157-YEJB225M4，YQFA157-YEJB250M4，YQFA157-YEJB280M4，YQFA157-YEJB315M4，YQFA157-YP160M4，YQFA157-YP180M4，YQFA157-YP200M4，YQFA157-YP225M4，YQFA157-YP250M4，YQFA157-YP280M4，YQFA157-YP315M4，YQFA157-YPB160M4，YQFA157-YPB180M4，YQFA157-YPB200M4，YQFA157-YPB225M4，YQFA157-YPB250M4，YQFA157-YPB280M4，YQFA157-YPB315M4，YQFA157-YPE160M4，YQFA157-YPE180M4，YQFA157-YPE200M4，YQFA157-YPE225M4，YQFA157-YPE250M4，YQFA157-YPE280M4，YQFA157-YPE315M4，YQFA157-YS160M4，YQFA157-YS180M4，YQFA157-YS200M4，YQFA157-YS225M4，YQFA157-YS250M4，YQFA157-YS280M4，YQFA157-YS315M4，YQFA157-YVB160M4，YQFA157-YVB180M4，YQFA157-YVB200M4，YQFA157-YVB225M4，YQFA157-YVB250M4，YQFA157-YVB280M4，YQFA157-YVB315M4，YQFA157-YVP160M4，YQFA157-YVP180M4，YQFA157-YVP200M4，YQFA157-YVP225M4，YQFA157-YVP250M4，YQFA157-YVP280M4，YQFA157-YVP315M4，YQFA157-YVPEJ160M4，YQFA157-YVPEJ180M4，YQFA157-YVPEJ200M4，YQFA157-YVPEJ225M4，YQFA157-YVPEJ250M4，YQFA157-YVPEJ280M4，YQFA157-YVPEJ315M4，XDFA157-Y110KW，XDFA157-Y11KW，XDFA157-Y132KW，XDFA157-Y15KW，XDFA157-Y160M4，XDFA157-Y18.5KW，XDFA157-Y180M4，XDFA157-Y200M4，XDFA157-Y225M4，XDFA157-Y22KW，XDFA157-Y250M4，XDFA157-Y280M4，XDFA157-Y30KW，XDFA157-Y315M4，XDFA157-Y37KW，XDFA157-Y45KW，XDFA157-Y55KW，XDFA157-Y75KW，XDFA157-Y90KW，XDFA157-YB160M4，XDFA157-YB180M4，XDFA157-YB200M4，XDFA157-YB225M4，XDFA157-YB250M4，XDFA157-YB280M4，XDFA157-YB315M4，XDFA157-YDP160M4，XDFA157-YDP180M4，XDFA157-YDP200M4，XDFA157-YDP225M4，XDFA157-YDP250M4，XDFA157-YDP280M4，XDFA157-YDP315M4，XDFA157-YE160M4，XDFA157-YE180M4，XDFA157-YE200M4，XDFA157-YE225M4，XDFA157-YE250M4，XDFA157-YE280M4，XDFA157-YE315M4，XDFA157-YEJ160M4，XDFA157-YEJ180M4，XDFA157-YEJ200M4，XDFA157-YEJ225M4，XDFA157-YEJ250M4，XDFA157-YEJ280M4，XDFA157-YEJ315M4，XDFA157-YEJB160M4，XDFA157-YEJB180M4，XDFA157-YEJB200M4，XDFA157-YEJB225M4，XDFA157-YEJB250M4，XDFA157-YEJB280M4，XDFA157-YEJB315M4，XDFA157-YP160M4，XDFA157-YP180M4，XDFA157-YP200M4，XDFA157-YP225M4，XDFA157-YP250M4，XDFA157-YP280M4，XDFA157-YP315M4，XDFA157-YPB160M4，XDFA157-YPB180M4，XDFA157-YPB200M4，XDFA157-YPB225M4，XDFA157-YPB250M4，XDFA157-YPB280M4，XDFA157-YPB315M4，XDFA157-YPE160M4，XDFA157-YPE180M4，XDFA157-YPE200M4，XDFA157-YPE225M4，XDFA157-YPE250M4，XDFA157-YPE280M4，XDFA157-YPE315M4，XDFA157-YS160M4，XDFA157-YS180M4，XDFA157-YS200M4，XDFA157-YS225M4，XDFA157-YS250M4，XDFA157-YS280M4，XDFA157-YS315M4，XDFA157-YVB160M4，XDFA157-YVB180M4，XDFA157-YVB200M4，XDFA157-YVB225M4，XDFA157-YVB250M4，XDFA157-YVB280M4，XDFA157-YVB315M4，XDFA157-YVP160M4，XDFA157-YVP180M4，XDFA157-YVP200M4，XDFA157-YVP225M4，XDFA157-YVP250M4，XDFA157-YVP280M4，XDFA157-YVP315M4，XDFA157-YVPEJ160M4，XDFA157-YVPEJ180M4，XDFA157-YVPEJ200M4，XDFA157-YVPEJ225M4，XDFA157-YVPEJ250M4，XDFA157-YVPEJ280M4，XDFA157-YVPEJ315M4，F(xiàn)WA157-Y110KW，F(xiàn)WA157-Y11KW，F(xiàn)WA157-Y132KW，F(xiàn)WA157-Y15KW，F(xiàn)WA157-Y160M4，F(xiàn)WA157-Y18.5KW，F(xiàn)WA157-Y180M4，F(xiàn)WA157-Y200M4，F(xiàn)WA157-Y225M4，F(xiàn)WA157-Y22KW，F(xiàn)WA157-Y250M4，F(xiàn)WA157-Y280M4，F(xiàn)WA157-Y30KW，F(xiàn)WA157-Y315M4，F(xiàn)WA157-Y37KW，F(xiàn)WA157-Y45KW，F(xiàn)WA157-Y55KW，F(xiàn)WA157-Y75KW，F(xiàn)WA157-Y90KW，F(xiàn)WA157-YB160M4，F(xiàn)WA157-YB180M4，F(xiàn)WA157-YB200M4，F(xiàn)WA157-YB225M4，F(xiàn)WA157-YB250M4，F(xiàn)WA157-YB280M4，F(xiàn)WA157-YB315M4，F(xiàn)WA157-YDP160M4，F(xiàn)WA157-YDP180M4，F(xiàn)WA157-YDP200M4，F(xiàn)WA157-YDP225M4，F(xiàn)WA157-YDP250M4，F(xiàn)WA157-YDP280M4，F(xiàn)WA157-YDP315M4，F(xiàn)WA157-YE160M4，F(xiàn)WA157-YE180M4，F(xiàn)WA157-YE200M4，F(xiàn)WA157-YE225M4，F(xiàn)WA157-YE250M4，F(xiàn)WA157-YE280M4，F(xiàn)WA157-YE315M4，F(xiàn)WA157-YEJ160M4，F(xiàn)WA157-YEJ180M4，F(xiàn)WA157-YEJ200M4，F(xiàn)WA157-YEJ225M4，F(xiàn)WA157-YEJ250M4，F(xiàn)WA157-YEJ280M4，F(xiàn)WA157-YEJ315M4，F(xiàn)WA157-YEJB160M4，F(xiàn)WA157-YEJB180M4，F(xiàn)WA157-YEJB200M4，F(xiàn)WA157-YEJB225M4，F(xiàn)WA157-YEJB250M4，F(xiàn)WA157-YEJB280M4，F(xiàn)WA157-YEJB315M4，F(xiàn)WA157-YP160M4，F(xiàn)WA157-YP180M4，F(xiàn)WA157-YP200M4，F(xiàn)WA157-YP225M4，F(xiàn)WA157-YP250M4，F(xiàn)WA157-YP280M4，F(xiàn)WA157-YP315M4，F(xiàn)WA157-YPB160M4，F(xiàn)WA157-YPB180M4，F(xiàn)WA157-YPB200M4，F(xiàn)WA157-YPB225M4，F(xiàn)WA157-YPB250M4，F(xiàn)WA157-YPB280M4，F(xiàn)WA157-YPB315M4，F(xiàn)WA157-YPE160M4，F(xiàn)WA157-YPE180M4，F(xiàn)WA157-YPE200M4，F(xiàn)WA157-YPE225M4，F(xiàn)WA157-YPE250M4，F(xiàn)WA157-YPE280M4，F(xiàn)WA157-YPE315M4，F(xiàn)WA157-YS160M4，F(xiàn)WA157-YS180M4，F(xiàn)WA157-YS200M4，F(xiàn)WA157-YS225M4，F(xiàn)WA157-YS250M4，F(xiàn)WA157-YS280M4，F(xiàn)WA157-YS315M4，F(xiàn)WA157-YVB160M4，F(xiàn)WA157-YVB180M4，F(xiàn)WA157-YVB200M4，F(xiàn)WA157-YVB225M4，F(xiàn)WA157-YVB250M4，F(xiàn)WA157-YVB280M4，F(xiàn)WA157-YVB315M4，F(xiàn)WA157-YVP160M4，F(xiàn)WA157-YVP180M4，F(xiàn)WA157-YVP200M4，F(xiàn)WA157-YVP225M4，F(xiàn)WA157-YVP250M4，F(xiàn)WA157-YVP280M4，F(xiàn)WA157-YVP315M4，F(xiàn)WA157-YVPEJ160M4，F(xiàn)WA157-YVPEJ180M4，F(xiàn)WA157-YVPEJ200M4，F(xiàn)WA157-YVPEJ225M4，F(xiàn)WA157-YVPEJ250M4，F(xiàn)WA157-YVPEJ280M4，F(xiàn)WA157-YVPEJ315M4，JCFA157-Y110KW，JCFA157-Y11KW，JCFA157-Y132KW，JCFA157-Y15KW，JCFA157-Y160M4，JCFA157-Y18.5KW，JCFA157-Y180M4，JCFA157-Y200M4，JCFA157-Y225M4，JCFA157-Y22KW，JCFA157-Y250M4，JCFA157-Y280M4，JCFA157-Y30KW，JCFA157-Y315M4，JCFA157-Y37KW，JCFA157-Y45KW，JCFA157-Y55KW，JCFA157-Y75KW，JCFA157-Y90KW，JCFA157-YB160M4，JCFA157-YB180M4，JCFA157-YB200M4，JCFA157-YB225M4，JCFA157-YB250M4，JCFA157-YB280M4，JCFA157-YB315M4，JCFA157-YDP160M4，JCFA157-YDP180M4，JCFA157-YDP200M4，JCFA157-YDP225M4，JCFA157-YDP250M4，JCFA157-YDP280M4，JCFA157-YDP315M4，JCFA157-YE160M4，JCFA157-YE180M4，JCFA157-YE200M4，JCFA157-YE225M4，JCFA157-YE250M4，JCFA157-YE280M4，JCFA157-YE315M4，JCFA157-YEJ160M4，JCFA157-YEJ180M4，JCFA157-YEJ200M4，JCFA157-YEJ225M4，JCFA157-YEJ250M4，JCFA157-YEJ280M4，JCFA157-YEJ315M4，JCFA157-YEJB160M4，JCFA157-YEJB180M4，JCFA157-YEJB200M4，JCFA157-YEJB225M4，JCFA157-YEJB250M4，JCFA157-YEJB280M4，JCFA157-YEJB315M4，JCFA157-YP160M4，JCFA157-YP180M4，JCFA157-YP200M4，JCFA157-YP225M4，JCFA157-YP250M4，JCFA157-YP280M4，JCFA157-YP315M4，JCFA157-YPB160M4，JCFA157-YPB180M4，JCFA157-YPB200M4，JCFA157-YPB225M4，JCFA157-YPB250M4，JCFA157-YPB280M4，JCFA157-YPB315M4，JCFA157-YPE160M4，JCFA157-YPE180M4，JCFA157-YPE200M4，JCFA157-YPE225M4，JCFA157-YPE250M4，JCFA157-YPE280M4，JCFA157-YPE315M4，JCFA157-YS160M4，JCFA157-YS180M4，JCFA157-YS200M4，JCFA157-YS225M4，JCFA157-YS250M4，JCFA157-YS280M4，JCFA157-YS315M4，JCFA157-YVB160M4，JCFA157-YVB180M4，JCFA157-YVB200M4，JCFA157-YVB225M4，JCFA157-YVB250M4，JCFA157-YVB280M4，JCFA157-YVB315M4，JCFA157-YVP160M4，JCFA157-YVP180M4，JCFA157-YVP200M4，JCFA157-YVP225M4，JCFA157-YVP250M4，JCFA157-YVP280M4，JCFA157-YVP315M4，JCFA157-YVPEJ160M4，JCFA157-YVPEJ180M4，JCFA157-YVPEJ200M4，JCFA157-YVPEJ225M4，JCFA157-YVPEJ250M4，JCFA157-YVPEJ280M4，JCFA157-YVPEJ315M4，F(xiàn)A159-Y110KW，F(xiàn)A159-Y11KW，F(xiàn)A159-Y132KW，F(xiàn)A159-Y15KW，F(xiàn)A159-Y160M4，F(xiàn)A159-Y18.5KW，F(xiàn)A159-Y180M4，F(xiàn)A159-Y200M4，F(xiàn)A159-Y225M4，F(xiàn)A159-Y22KW，F(xiàn)A159-Y250M4，F(xiàn)A159-Y280M4，F(xiàn)A159-Y30KW，F(xiàn)A159-Y315M4，F(xiàn)A159-Y37KW，F(xiàn)A159-Y45KW，F(xiàn)A159-Y55KW，F(xiàn)A159-Y75KW，F(xiàn)A159-Y90KW，F(xiàn)A159-YB160M4，F(xiàn)A159-YB180M4，F(xiàn)A159-YB200M4，F(xiàn)A159-YB225M4，F(xiàn)A159-YB250M4，F(xiàn)A159-YB280M4，F(xiàn)A159-YB315M4，F(xiàn)A159-YDP160M4，F(xiàn)A159-YDP180M4，F(xiàn)A159-YDP200M4，F(xiàn)A159-YDP225M4，F(xiàn)A159-YDP250M4，F(xiàn)A159-YDP280M4，F(xiàn)A159-YDP315M4，F(xiàn)A159-YE160M4，F(xiàn)A159-YE180M4，F(xiàn)A159-YE200M4，F(xiàn)A159-YE225M4，F(xiàn)A159-YE250M4，F(xiàn)A159-YE280M4，F(xiàn)A159-YE315M4，F(xiàn)A159-YEJ160M4，F(xiàn)A159-YEJ180M4，F(xiàn)A159-YEJ200M4，F(xiàn)A159-YEJ225M4，F(xiàn)A159-YEJ250M4，F(xiàn)A159-YEJ280M4，F(xiàn)A159-YEJ315M4，F(xiàn)A159-YEJB160M4，F(xiàn)A159-YEJB180M4，F(xiàn)A159-YEJB200M4，F(xiàn)A159-YEJB225M4，F(xiàn)A159-YEJB250M4，F(xiàn)A159-YEJB280M4，F(xiàn)A159-YEJB315M4，F(xiàn)A159-YP160M4，F(xiàn)A159-YP180M4，F(xiàn)A159-YP200M4，F(xiàn)A159-YP225M4，F(xiàn)A159-YP250M4，F(xiàn)A159-YP280M4，F(xiàn)A159-YP315M4，F(xiàn)A159-YPB160M4，F(xiàn)A159-YPB180M4，F(xiàn)A159-YPB200M4，F(xiàn)A159-YPB225M4，F(xiàn)A159-YPB250M4，F(xiàn)A159-YPB280M4，F(xiàn)A159-YPB315M4，F(xiàn)A159-YPE160M4，F(xiàn)A159-YPE180M4，F(xiàn)A159-YPE200M4，F(xiàn)A159-YPE225M4，F(xiàn)A159-YPE250M4，F(xiàn)A159-YPE280M4，F(xiàn)A159-YPE315M4，F(xiàn)A159-YS160M4，F(xiàn)A159-YS180M4，F(xiàn)A159-YS200M4，F(xiàn)A159-YS225M4，F(xiàn)A159-YS250M4，F(xiàn)A159-YS280M4，F(xiàn)A159-YS315M4，F(xiàn)A159-YVB160M4，F(xiàn)A159-YVB180M4，F(xiàn)A159-YVB200M4，F(xiàn)A159-YVB225M4，F(xiàn)A159-YVB250M4，F(xiàn)A159-YVB280M4，F(xiàn)A159-YVB315M4，F(xiàn)A159-YVP160M4，F(xiàn)A159-YVP180M4，F(xiàn)A159-YVP200M4，F(xiàn)A159-YVP225M4，F(xiàn)A159-YVP250M4，F(xiàn)A159-YVP280M4，F(xiàn)A159-YVP315M4，F(xiàn)A159-YVPEJ160M4，F(xiàn)A159-YVPEJ180M4，F(xiàn)A159-YVPEJ200M4，F(xiàn)A159-YVPEJ225M4，F(xiàn)A159-YVPEJ250M4，F(xiàn)A159-YVPEJ280M4，F(xiàn)A159-YVPEJ315M4，F(xiàn)A157SF80，F(xiàn)A157SF90，F(xiàn)A157SF100，F(xiàn)A157SF112，F(xiàn)A157SF115，F(xiàn)A157SF140，F(xiàn)A157SF160，F(xiàn)A157SF190。

FA159減速器生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.hnwshg.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：F159減速機
