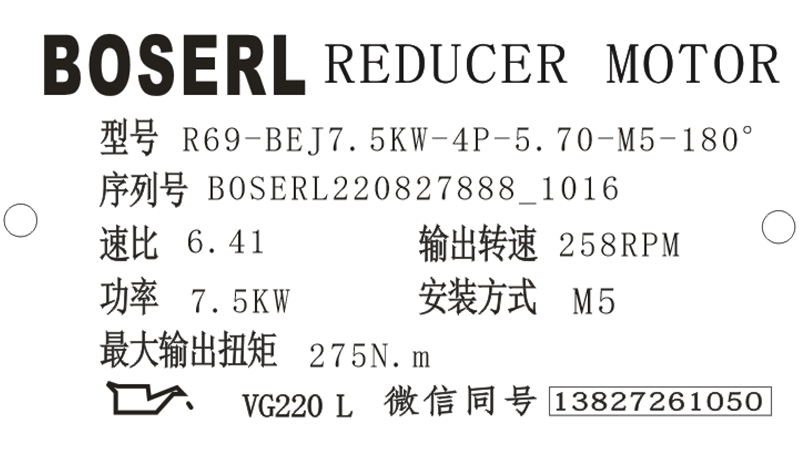

R69減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的R69減速器選型樣本。

R69-BEJ7.5KW-4P-5.70-M5-180°

R：系列代號

69：減速機規格代號

B：電機

EJ：剎車

7.5KW：電機功率

4P：電機級數

5.70：減速機傳動比

M5：減速機安裝位置

180°：接線盒位置

R69減速器上的圖標說明：下表列出安裝位置章節中所采用的圖標及其含義

R69減速器安裝所需工具以及材料：

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件（墊片、間隔環）、輸入/輸出元件的緊固裝置、 潤滑油（R69減速器出廠已經自帶潤滑油）、用于緊固螺栓的密封膠（針對帶對中軸肩的輸入軸裝置AD/ZR），所有的標準部件均不是供貨范圍。齒輪減速電機

R69減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近！同時還要檢查，注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。R69減速器在出廠時加注了相應油量的潤滑油。由于安裝位置的原因，從油位螺栓觀察，油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時，潤滑油加注油量和透氣閥的位置必須作相應的調整。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將R69減速器的安裝位置改變?yōu)镸5或M6，或者M(jìn)5、M6之間的安裝位置，請您咨詢BOSERL公司客戶服務部。若要將R69減速器改裝成M2或M3時，請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕，請您在R69減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須＜109Ω。電化學腐蝕可能發生在不同的金屬物質之間，如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片！還要通過電機上的接地螺栓對R69減速器箱體進行連接接地。

R69減速器故障售后服務統籌：

在磨合期（48小時的運轉時間內）油封可能出現短期內的滲油或油脂的現象。對R69減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障，請與BOSERL公司客戶服務部聯系。臥式減速機

R69減速器異常、無規律的運轉噪音：軸承損壞，檢查潤滑油參見“R69減速器說明書的檢查/維護”章節，更換軸承；齒輪有損失，請向客戶服務部咨詢；潤滑油中有異物，檢查潤滑油參見“R69減速器說明書的檢查/維護”章節；傳動裝置停車，請向客戶服務部咨詢；

R69減速器潤滑油泄露：R69減速器密封面密封性能不良，擰緊R69減速器蓋上的螺釘并觀察R69減速器。如果潤滑油繼續泄露，請向客戶服務部咨詢；密封圈損壞，請向客戶服務部咨詢；R69減速器透氣閥失效，給R69減速器透氣參見“R69減速器說明書的安裝位置”章節。

R69減速器潤滑油從透氣閥處滲出：潤滑油太多，調節油量參見“R69減速器說明書的檢查/維護”章節；R69減速器安裝位置錯誤，正確安裝透氣閥參見“R69減速器說明書的安裝位置”章節，調節油位參見“R69減速器說明書的檢查/維護”章節。

R69減速器電機或輸入軸轉動，而輸出軸不轉：R69減速器中的軸輪轂聯接斷裂，將R69減速器或減速電機送來我司修理。R系列減速機

R69減速器型號：

R69-AM100M4，R69-AM112M4，R69-AM132M4，R69-AM63M4，R69-AM71M4，R69-AM80M4，R69-AM90M4，R69-Y0.12KW，R69-Y0.18KW，R69-Y0.25KW，R69-Y0.37KW，R69-Y0.55KW，R69-Y0.75KW，R69-Y1.1KW，R69-Y1.5KW，R69-Y100M4，R69-Y112M4，R69-Y132M4，R69-Y2.2KW，R69-Y3KW，R69-Y4KW，R69-Y5.5KW，R69-Y63M4，R69-Y7.5KW，R69-Y71M4，R69-Y80M4，R69-Y90M4，R69-YB100M4，R69-YB112M4，R69-YB132M4，R69-YB63M4，R69-YB71M4，R69-YB80M4，R69-YB90M4，R69-YDP100M4，R69-YDP112M4，R69-YDP132M4，R69-YDP63M4，R69-YDP71M4，R69-YDP80M4，R69-YDP90M4，R69-YE100M4，R69-YE112M4，R69-YE132M4，R69-YE63M4，R69-YE71M4，R69-YE80M4，R69-YE90M4，R69-YEJ100M4，R69-YEJ112M4，R69-YEJ132M4，R69-YEJ63M4，R69-YEJ71M4，R69-YEJ80M4，R69-YEJ90M4，R69-YEJB100M4，R69-YEJB112M4，R69-YEJB132M4，R69-YEJB63M4，R69-YEJB71M4，R69-YEJB80M4，R69-YEJB90M4，R69-YP100M4，R69-YP112M4，R69-YP132M4，R69-YP63M4，R69-YP71M4，R69-YP80M4，R69-YP90M4，R69-YPB100M4，R69-YPB112M4，R69-YPB132M4，R69-YPB63M4，R69-YPB71M4，R69-YPB80M4，R69-YPB90M4，R69-YPE100M4，R69-YPE112M4，R69-YPE132M4，R69-YPE63M4，R69-YPE71M4，R69-YPE80M4，R69-YPE90M4，R69-YS100M4，R69-YS112M4，R69-YS132M4，R69-YS63M4，R69-YS71M4，R69-YS80M4，R69-YS90M4，R69-YVB100M4，R69-YVB112M4，R69-YVB132M4，R69-YVB63M4，R69-YVB71M4，R69-YVB80M4，R69-YVB90M4，R69-YVP100M4，R69-YVP112M4，R69-YVP132M4，R69-YVP63M4，R69-YVP71M4，R69-YVP80M4，R69-YVP90M4，R69-YVPEJ100M4，R69-YVPEJ112M4，R69-YVPEJ132M4，R69-YVPEJ63M4，R69-YVPEJ71M4，R69-YVPEJ80M4，R69-YVPEJ90M4，RW67-AM100M4，RW67-AM112M4，RW67-AM132M4，RW67-AM63M4，RW67-AM71M4，RW67-AM80M4，RW67-AM90M4，RW67-Y0.12KW，RW67-Y0.18KW，RW67-Y0.25KW，RW67-Y0.37KW，RW67-Y0.55KW，RW67-Y0.75KW，RW67-Y1.1KW，RW67-Y1.5KW，RW67-Y100M4，RW67-Y112M4，RW67-Y132M4，RW67-Y2.2KW，RW67-Y3KW，RW67-Y4KW，RW67-Y5.5KW，RW67-Y63M4，RW67-Y7.5KW，RW67-Y71M4，RW67-Y80M4，RW67-Y90M4，RW67-YB100M4，RW67-YB112M4，RW67-YB132M4，RW67-YB63M4，RW67-YB71M4，RW67-YB80M4，RW67-YB90M4，RW67-YDP100M4，RW67-YDP112M4，RW67-YDP132M4，RW67-YDP63M4，RW67-YDP71M4，RW67-YDP80M4，RW67-YDP90M4，RW67-YE100M4，RW67-YE112M4，RW67-YE132M4，RW67-YE63M4，RW67-YE71M4，RW67-YE80M4，RW67-YE90M4，RW67-YEJ100M4，RW67-YEJ112M4，RW67-YEJ132M4，RW67-YEJ63M4，RW67-YEJ71M4，RW67-YEJ80M4，RW67-YEJ90M4，RW67-YEJB100M4，RW67-YEJB112M4，RW67-YEJB132M4，RW67-YEJB63M4，RW67-YEJB71M4，RW67-YEJB80M4，RW67-YEJB90M4，RW67-YP100M4，RW67-YP112M4，RW67-YP132M4，RW67-YP63M4，RW67-YP71M4，RW67-YP80M4，RW67-YP90M4，RW67-YPB100M4，RW67-YPB112M4，RW67-YPB132M4，RW67-YPB63M4，RW67-YPB71M4，RW67-YPB80M4，RW67-YPB90M4，RW67-YPE100M4，RW67-YPE112M4，RW67-YPE132M4，RW67-YPE63M4，RW67-YPE71M4，RW67-YPE80M4，RW67-YPE90M4，RW67-YS100M4，RW67-YS112M4，RW67-YS132M4，RW67-YS63M4，RW67-YS71M4，RW67-YS80M4，RW67-YS90M4，RW67-YVB100M4，RW67-YVB112M4，RW67-YVB132M4，RW67-YVB63M4，RW67-YVB71M4，RW67-YVB80M4，RW67-YVB90M4，RW67-YVP100M4，RW67-YVP112M4，RW67-YVP132M4，RW67-YVP63M4，RW67-YVP71M4，RW67-YVP80M4，RW67-YVP90M4，RW67-YVPEJ100M4，RW67-YVPEJ112M4，RW67-YVPEJ132M4，RW67-YVPEJ63M4，RW67-YVPEJ71M4，RW67-YVPEJ80M4，RW67-YVPEJ90M4，YQR67-AM100M4，YQR67-AM112M4，YQR67-AM132M4，YQR67-AM63M4，YQR67-AM71M4，YQR67-AM80M4，YQR67-AM90M4，YQR67-Y0.12KW，YQR67-Y0.18KW，YQR67-Y0.25KW，YQR67-Y0.37KW，YQR67-Y0.55KW，YQR67-Y0.75KW，YQR67-Y1.1KW，YQR67-Y1.5KW，YQR67-Y100M4，YQR67-Y112M4，YQR67-Y132M4，YQR67-Y2.2KW，YQR67-Y3KW，YQR67-Y4KW，YQR67-Y5.5KW，YQR67-Y63M4，YQR67-Y7.5KW，YQR67-Y71M4，YQR67-Y80M4，YQR67-Y90M4，YQR67-YB100M4，YQR67-YB112M4，YQR67-YB132M4，YQR67-YB63M4，YQR67-YB71M4，YQR67-YB80M4，YQR67-YB90M4，YQR67-YDP100M4，YQR67-YDP112M4，YQR67-YDP132M4，YQR67-YDP63M4，YQR67-YDP71M4，YQR67-YDP80M4，YQR67-YDP90M4，YQR67-YE100M4，YQR67-YE112M4，YQR67-YE132M4，YQR67-YE63M4，YQR67-YE71M4，YQR67-YE80M4，YQR67-YE90M4，YQR67-YEJ100M4，YQR67-YEJ112M4，YQR67-YEJ132M4，YQR67-YEJ63M4，YQR67-YEJ71M4，YQR67-YEJ80M4，YQR67-YEJ90M4，YQR67-YEJB100M4，YQR67-YEJB112M4，YQR67-YEJB132M4，YQR67-YEJB63M4，YQR67-YEJB71M4，YQR67-YEJB80M4，YQR67-YEJB90M4，YQR67-YP100M4，YQR67-YP112M4，YQR67-YP132M4，YQR67-YP63M4，YQR67-YP71M4，YQR67-YP80M4，YQR67-YP90M4，YQR67-YPB100M4，YQR67-YPB112M4，YQR67-YPB132M4，YQR67-YPB63M4，YQR67-YPB71M4，YQR67-YPB80M4，YQR67-YPB90M4，YQR67-YPE100M4，YQR67-YPE112M4，YQR67-YPE132M4，YQR67-YPE63M4，YQR67-YPE71M4，YQR67-YPE80M4，YQR67-YPE90M4，YQR67-YS100M4，YQR67-YS112M4，YQR67-YS132M4，YQR67-YS63M4，YQR67-YS71M4，YQR67-YS80M4，YQR67-YS90M4，YQR67-YVB100M4，YQR67-YVB112M4，YQR67-YVB132M4，YQR67-YVB63M4，YQR67-YVB71M4，YQR67-YVB80M4，YQR67-YVB90M4，YQR67-YVP100M4，YQR67-YVP112M4，YQR67-YVP132M4，YQR67-YVP63M4，YQR67-YVP71M4，YQR67-YVP80M4，YQR67-YVP90M4，YQR67-YVPEJ100M4，YQR67-YVPEJ112M4，YQR67-YVPEJ132M4，YQR67-YVPEJ63M4，YQR67-YVPEJ71M4，YQR67-YVPEJ80M4，YQR67-YVPEJ90M4，JCR67-AM100M4，JCR67-AM112M4，JCR67-AM132M4，JCR67-AM63M4，JCR67-AM71M4，JCR67-AM80M4，JCR67-AM90M4，JCR67-Y0.12KW，JCR67-Y0.18KW，JCR67-Y0.25KW，JCR67-Y0.37KW，JCR67-Y0.55KW，JCR67-Y0.75KW，JCR67-Y1.1KW，JCR67-Y1.5KW，JCR67-Y100M4，JCR67-Y112M4，JCR67-Y132M4，JCR67-Y2.2KW，JCR67-Y3KW，JCR67-Y4KW，JCR67-Y5.5KW，JCR67-Y63M4，JCR67-Y7.5KW，JCR67-Y71M4，JCR67-Y80M4，JCR67-Y90M4，JCR67-YB100M4，JCR67-YB112M4，JCR67-YB132M4，JCR67-YB63M4，JCR67-YB71M4，JCR67-YB80M4，JCR67-YB90M4，JCR67-YDP100M4，JCR67-YDP112M4，JCR67-YDP132M4，JCR67-YDP63M4，JCR67-YDP71M4，JCR67-YDP80M4，JCR67-YDP90M4，JCR67-YE100M4，JCR67-YE112M4，JCR67-YE132M4，JCR67-YE63M4，JCR67-YE71M4，JCR67-YE80M4，JCR67-YE90M4，JCR67-YEJ100M4，JCR67-YEJ112M4，JCR67-YEJ132M4，JCR67-YEJ63M4，JCR67-YEJ71M4，JCR67-YEJ80M4，JCR67-YEJ90M4，JCR67-YEJB100M4，JCR67-YEJB112M4，JCR67-YEJB132M4，JCR67-YEJB63M4，JCR67-YEJB71M4，JCR67-YEJB80M4，JCR67-YEJB90M4，JCR67-YP100M4，JCR67-YP112M4，JCR67-YP132M4，JCR67-YP63M4，JCR67-YP71M4，JCR67-YP80M4，JCR67-YP90M4，JCR67-YPB100M4，JCR67-YPB112M4，JCR67-YPB132M4，JCR67-YPB63M4，JCR67-YPB71M4，JCR67-YPB80M4，JCR67-YPB90M4，JCR67-YPE100M4，JCR67-YPE112M4，JCR67-YPE132M4，JCR67-YPE63M4，JCR67-YPE71M4，JCR67-YPE80M4，JCR67-YPE90M4，JCR67-YS100M4，JCR67-YS112M4，JCR67-YS132M4，JCR67-YS63M4，JCR67-YS71M4，JCR67-YS80M4，JCR67-YS90M4，JCR67-YVB100M4，JCR67-YVB112M4，JCR67-YVB132M4，JCR67-YVB63M4，JCR67-YVB71M4，JCR67-YVB80M4，JCR67-YVB90M4，JCR67-YVP100M4，JCR67-YVP112M4，JCR67-YVP132M4，JCR67-YVP63M4，JCR67-YVP71M4，JCR67-YVP80M4，JCR67-YVP90M4，JCR67-YVPEJ100M4，JCR67-YVPEJ112M4，JCR67-YVPEJ132M4，JCR67-YVPEJ63M4，JCR67-YVPEJ71M4，JCR67-YVPEJ80M4，JCR67-YVPEJ90M4，XDR67-AM100M4，XDR67-AM112M4，XDR67-AM132M4，XDR67-AM63M4，XDR67-AM71M4，XDR67-AM80M4，XDR67-AM90M4，XDR67-Y0.12KW，XDR67-Y0.18KW，XDR67-Y0.25KW，XDR67-Y0.37KW，XDR67-Y0.55KW，XDR67-Y0.75KW，XDR67-Y1.1KW，XDR67-Y1.5KW，XDR67-Y100M4，XDR67-Y112M4，XDR67-Y132M4，XDR67-Y2.2KW，XDR67-Y3KW，XDR67-Y4KW，XDR67-Y5.5KW，XDR67-Y63M4，XDR67-Y7.5KW，XDR67-Y71M4，XDR67-Y80M4，XDR67-Y90M4，XDR67-YB100M4，XDR67-YB112M4，XDR67-YB132M4，XDR67-YB63M4，XDR67-YB71M4，XDR67-YB80M4，XDR67-YB90M4，XDR67-YDP100M4，XDR67-YDP112M4，XDR67-YDP132M4，XDR67-YDP63M4，XDR67-YDP71M4，XDR67-YDP80M4，XDR67-YDP90M4，XDR67-YE100M4，XDR67-YE112M4，XDR67-YE132M4，XDR67-YE63M4，XDR67-YE71M4，XDR67-YE80M4，XDR67-YE90M4，XDR67-YEJ100M4，XDR67-YEJ112M4，XDR67-YEJ132M4，XDR67-YEJ63M4，XDR67-YEJ71M4，XDR67-YEJ80M4，XDR67-YEJ90M4，XDR67-YEJB100M4，XDR67-YEJB112M4，XDR67-YEJB132M4，XDR67-YEJB63M4，XDR67-YEJB71M4，XDR67-YEJB80M4，XDR67-YEJB90M4，XDR67-YP100M4，XDR67-YP112M4，XDR67-YP132M4，XDR67-YP63M4，XDR67-YP71M4，XDR67-YP80M4，XDR67-YP90M4，XDR67-YPB100M4，XDR67-YPB112M4，XDR67-YPB132M4，XDR67-YPB63M4，XDR67-YPB71M4，XDR67-YPB80M4，XDR67-YPB90M4，XDR67-YPE100M4，XDR67-YPE112M4，XDR67-YPE132M4，XDR67-YPE63M4，XDR67-YPE71M4，XDR67-YPE80M4，XDR67-YPE90M4，XDR67-YS100M4，XDR67-YS112M4，XDR67-YS132M4，XDR67-YS63M4，XDR67-YS71M4，XDR67-YS80M4，XDR67-YS90M4，XDR67-YVB100M4，XDR67-YVB112M4，XDR67-YVB132M4，XDR67-YVB63M4，XDR67-YVB71M4，XDR67-YVB80M4，XDR67-YVB90M4，XDR67-YVP100M4，XDR67-YVP112M4，XDR67-YVP132M4，XDR67-YVP63M4，XDR67-YVP71M4，XDR67-YVP80M4，XDR67-YVP90M4，XDR67-YVPEJ100M4，XDR67-YVPEJ112M4，XDR67-YVPEJ132M4，XDR67-YVPEJ63M4，XDR67-YVPEJ71M4，XDR67-YVPEJ80M4，XDR67-YVPEJ90M4，R67SF80，R67SF90，R67SF100，R67SF112，R67SF115，R67SF140，R67SF160，R67SF190。
