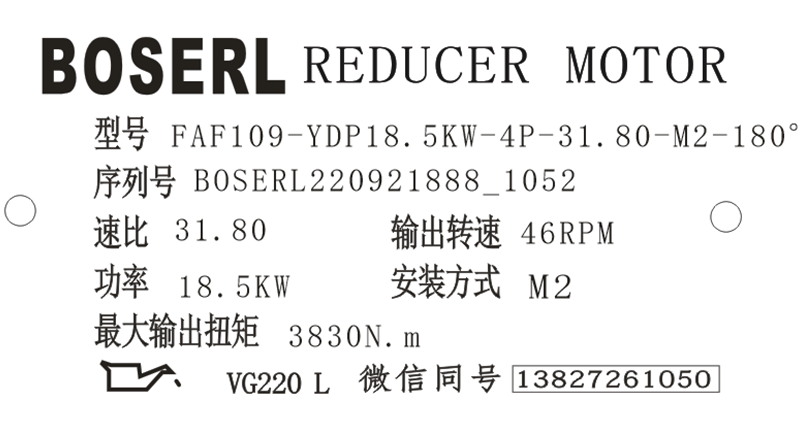

FAF109減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FAF109減速機選型樣本。

FAF109-YDP18.5KW-4P-31.80-M2-180°

FAF：系列代號

109：減速機規格代號

YDP：電機

18.5KW：電機功率

4P：電機級數

31.80：減速機傳動比

M2：減速機安裝位置

180°：接線盒位置

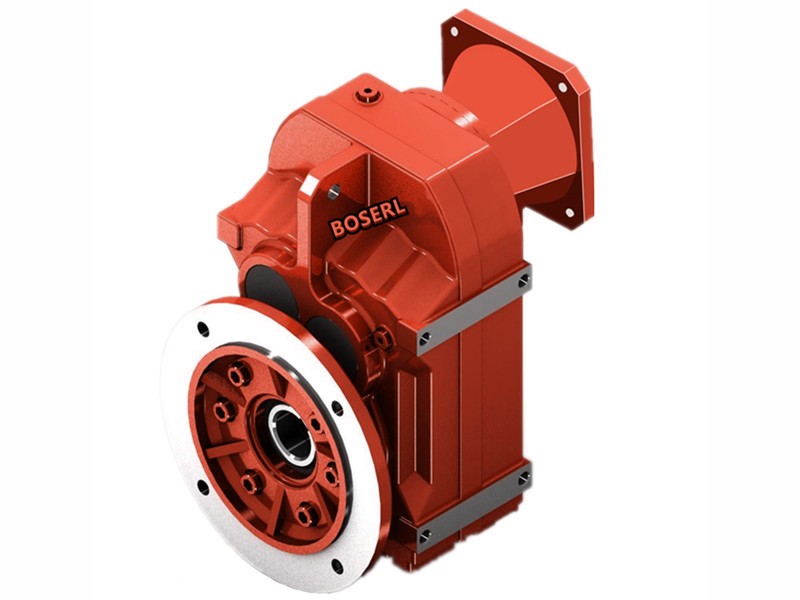

FAF109減速機AD軸入模塊配置：

FAF109減速機AD軸入模塊使用對中軸肩安裝應用設備：對應用設備進行固定時，必須提供相應長度的螺栓。新螺栓的長度L計算如下：［1］t+a；［t］旋入深度（參見表格）；［a］應用設備的厚度；［s］緊固螺紋（參見表格）

FAF109減速機AD軸入模塊根據計算所得的螺栓長度，選取最接近的較小的標準長度；從對中軸肩上卸下固定螺栓；清潔裝配表面和對中軸肩；清潔新螺栓的螺紋并且使用螺栓緊固劑抹在前段螺紋上；將應用設備裝在對中軸肩上，并根據下表所列的擰緊扭矩TA(見下表)擰入緊固螺栓。變頻電機減速機

FAF109減速機AD軸入模塊允許荷載：安裝電機時可能出現超常負荷；嚴禁超出下表所列的負荷值。強度等級為8.8的連接螺栓的最大負荷值。電機的最大允許許重力Fqmax，隨著中心距X的增加而呈線性下降。在中心距減小的情況下，F(xiàn)qmax不增加；聯軸器輸出法蘭盤直徑：160mm。齒輪減速電機

FAF109減速機AD軸入模塊在進行調節之前松開螺母，使得螺栓可以在支架上軸向移動。當?shù)竭_(dá)最終調節位置后再上緊螺母。不可通過支架來調整電機安裝平臺。

FAF109減速機維護檢查：

FAF109減速機檢查：首次運行300小時后更換潤滑油，以后每6個月或3000小時檢查一次，發現油位不足或明顯渾濁應及時更換(參考下列圖表)：操作步驟檢查油的質量與油位；檢查是否可能因軸承損壞產生運轉噪音；檢查密封圈是否漏油；對于帶扭矩臂的FAF109減速機：檢測橡膠緩沖塊，必要時進行更換。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換礦物油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換合成潤滑油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。示具體情況而定，不定期檢查（取決于外部影響）：修補或者更新表面漆/防銹漆。

FAF109減速機潤滑油更換周期：下圖為在一般條件下標準FAF109減速機的更換周期，對于惡劣環境或有腐蝕條件下使用的特殊情況要縮短更換潤滑油的間隔。平行軸斜齒輪減速機

FAF109減速機維護：根據外部受到的影響，可以在必要情況下對表面漆/防銹漆進行修補或更新。

FAF109減速機型號：

NFAF107-Y1.5KW，NFAF107-Y100M4，NFAF107-Y112M4，NFAF107-Y11KW，NFAF107-Y132M4，NFAF107-Y15KW，NFAF107-Y160M4，NFAF107-Y18.5KW，NFAF107-Y180M4，NFAF107-Y2.2KW，NFAF107-Y200M4，NFAF107-Y225M4，NFAF107-Y22KW，NFAF107-Y30KW，NFAF107-Y37KW，NFAF107-Y3KW，NFAF107-Y45KW，NFAF107-Y4KW，NFAF107-Y5.5KW，NFAF107-Y7.5KW，NFAF107-Y80M4，NFAF107-Y90M4，NFAF107-YB100M4，NFAF107-YB112M4，NFAF107-YB132M4，NFAF107-YB160M4，NFAF107-YB180M4，NFAF107-YB200M4，NFAF107-YB225M4，NFAF107-YB80M4，NFAF107-YB90M4，NFAF107-YDP100M4，NFAF107-YDP112M4，NFAF107-YDP132M4，NFAF107-YDP160M4，NFAF107-YDP180M4，NFAF107-YDP200M4，NFAF107-YDP225M4，NFAF107-YDP80M4，NFAF107-YDP90M4，NFAF107-YE100M4，NFAF107-YE112M4，NFAF107-YE132M4，NFAF107-YE160M4，NFAF107-YE180M4，NFAF107-YE200M4，NFAF107-YE225M4，NFAF107-YE80M4，NFAF107-YE90M4，NFAF107-YEJ100M4，NFAF107-YEJ112M4，NFAF107-YEJ132M4，NFAF107-YEJ160M4，NFAF107-YEJ180M4，NFAF107-YEJ200M4，NFAF107-YEJ225M4，NFAF107-YEJ80M4，NFAF107-YEJ90M4，NFAF107-YEJB100M4，NFAF107-YEJB112M4，NFAF107-YEJB132M4，NFAF107-YEJB160M4，NFAF107-YEJB180M4，NFAF107-YEJB200M4，NFAF107-YEJB225M4，NFAF107-YEJB80M4，NFAF107-YEJB90M4，NFAF107-YP100M4，NFAF107-YP112M4，NFAF107-YP132M4，NFAF107-YP160M4，NFAF107-YP180M4，NFAF107-YP200M4，NFAF107-YP225M4，NFAF107-YP80M4，NFAF107-YP90M4，NFAF107-YPB100M4，NFAF107-YPB112M4，NFAF107-YPB132M4，NFAF107-YPB160M4，NFAF107-YPB180M4，NFAF107-YPB200M4，NFAF107-YPB225M4，NFAF107-YPB80M4，NFAF107-YPB90M4，NFAF107-YPE100M4，NFAF107-YPE112M4，NFAF107-YPE132M4，NFAF107-YPE160M4，NFAF107-YPE180M4，NFAF107-YPE200M4，NFAF107-YPE225M4，NFAF107-YPE80M4，NFAF107-YPE90M4，NFAF107-YS100M4，NFAF107-YS112M4，NFAF107-YS132M4，NFAF107-YS160M4，NFAF107-YS180M4，NFAF107-YS200M4，NFAF107-YS225M4，NFAF107-YS80M4，NFAF107-YS90M4，NFAF107-YVB100M4，NFAF107-YVB112M4，NFAF107-YVB132M4，NFAF107-YVB160M4，NFAF107-YVB180M4，NFAF107-YVB200M4，NFAF107-YVB225M4，NFAF107-YVB80M4，NFAF107-YVB90M4，NFAF107-YVP100M4，NFAF107-YVP112M4，NFAF107-YVP132M4，NFAF107-YVP160M4，NFAF107-YVP180M4，NFAF107-YVP200M4，NFAF107-YVP225M4，NFAF107-YVP80M4，NFAF107-YVP90M4，NFAF107-YVPEJ100M4，NFAF107-YVPEJ112M4，NFAF107-YVPEJ132M4，NFAF107-YVPEJ160M4，NFAF107-YVPEJ180M4，NFAF107-YVPEJ200M4，NFAF107-YVPEJ225M4，NFAF107-YVPEJ80M4，NFAF107-YVPEJ90M4，AFAF107-Y1.5KW，AFAF107-Y100M4，AFAF107-Y112M4，AFAF107-Y11KW，AFAF107-Y132M4，AFAF107-Y15KW，AFAF107-Y160M4，AFAF107-Y18.5KW，AFAF107-Y180M4，AFAF107-Y2.2KW，AFAF107-Y200M4，AFAF107-Y225M4，AFAF107-Y22KW，AFAF107-Y30KW，AFAF107-Y37KW，AFAF107-Y3KW，AFAF107-Y45KW，AFAF107-Y4KW，AFAF107-Y5.5KW，AFAF107-Y7.5KW，AFAF107-Y80M4，AFAF107-Y90M4，AFAF107-YB100M4，AFAF107-YB112M4，AFAF107-YB132M4，AFAF107-YB160M4，AFAF107-YB180M4，AFAF107-YB200M4，AFAF107-YB225M4，AFAF107-YB80M4，AFAF107-YB90M4，AFAF107-YDP100M4，AFAF107-YDP112M4，AFAF107-YDP132M4，AFAF107-YDP160M4，AFAF107-YDP180M4，AFAF107-YDP200M4，AFAF107-YDP225M4，AFAF107-YDP80M4，AFAF107-YDP90M4，AFAF107-YE100M4，AFAF107-YE112M4，AFAF107-YE132M4，AFAF107-YE160M4，AFAF107-YE180M4，AFAF107-YE200M4，AFAF107-YE225M4，AFAF107-YE80M4，AFAF107-YE90M4，AFAF107-YEJ100M4，AFAF107-YEJ112M4，AFAF107-YEJ132M4，AFAF107-YEJ160M4，AFAF107-YEJ180M4，AFAF107-YEJ200M4，AFAF107-YEJ225M4，AFAF107-YEJ80M4，AFAF107-YEJ90M4，AFAF107-YEJB100M4，AFAF107-YEJB112M4，AFAF107-YEJB132M4，AFAF107-YEJB160M4，AFAF107-YEJB180M4，AFAF107-YEJB200M4，AFAF107-YEJB225M4，AFAF107-YEJB80M4，AFAF107-YEJB90M4，AFAF107-YP100M4，AFAF107-YP112M4，AFAF107-YP132M4，AFAF107-YP160M4，AFAF107-YP180M4，AFAF107-YP200M4，AFAF107-YP225M4，AFAF107-YP80M4，AFAF107-YP90M4，AFAF107-YPB100M4，AFAF107-YPB112M4，AFAF107-YPB132M4，AFAF107-YPB160M4，AFAF107-YPB180M4，AFAF107-YPB200M4，AFAF107-YPB225M4，AFAF107-YPB80M4，AFAF107-YPB90M4，AFAF107-YPE100M4，AFAF107-YPE112M4，AFAF107-YPE132M4，AFAF107-YPE160M4，AFAF107-YPE180M4，AFAF107-YPE200M4，AFAF107-YPE225M4，AFAF107-YPE80M4，AFAF107-YPE90M4，AFAF107-YS100M4，AFAF107-YS112M4，AFAF107-YS132M4，AFAF107-YS160M4，AFAF107-YS180M4，AFAF107-YS200M4，AFAF107-YS225M4，AFAF107-YS80M4，AFAF107-YS90M4，AFAF107-YVB100M4，AFAF107-YVB112M4，AFAF107-YVB132M4，AFAF107-YVB160M4，AFAF107-YVB180M4，AFAF107-YVB200M4，AFAF107-YVB225M4，AFAF107-YVB80M4，AFAF107-YVB90M4，AFAF107-YVP100M4，AFAF107-YVP112M4，AFAF107-YVP132M4，AFAF107-YVP160M4，AFAF107-YVP180M4，AFAF107-YVP200M4，AFAF107-YVP225M4，AFAF107-YVP80M4，AFAF107-YVP90M4，AFAF107-YVPEJ100M4，AFAF107-YVPEJ112M4，AFAF107-YVPEJ132M4，AFAF107-YVPEJ160M4，AFAF107-YVPEJ180M4，AFAF107-YVPEJ200M4，AFAF107-YVPEJ225M4，AFAF107-YVPEJ80M4，AFAF107-YVPEJ90M4，SFAF107-Y1.5KW，SFAF107-Y100M4，SFAF107-Y112M4，SFAF107-Y11KW，SFAF107-Y132M4，SFAF107-Y15KW，SFAF107-Y160M4，SFAF107-Y18.5KW，SFAF107-Y180M4，SFAF107-Y2.2KW，SFAF107-Y200M4，SFAF107-Y225M4，SFAF107-Y22KW，SFAF107-Y30KW，SFAF107-Y37KW，SFAF107-Y3KW，SFAF107-Y45KW，SFAF107-Y4KW，SFAF107-Y5.5KW，SFAF107-Y7.5KW，SFAF107-Y80M4，SFAF107-Y90M4，SFAF107-YB100M4，SFAF107-YB112M4，SFAF107-YB132M4，SFAF107-YB160M4，SFAF107-YB180M4，SFAF107-YB200M4，SFAF107-YB225M4，SFAF107-YB80M4，SFAF107-YB90M4，SFAF107-YDP100M4，SFAF107-YDP112M4，SFAF107-YDP132M4，SFAF107-YDP160M4，SFAF107-YDP180M4，SFAF107-YDP200M4，SFAF107-YDP225M4，SFAF107-YDP80M4，SFAF107-YDP90M4，SFAF107-YE100M4，SFAF107-YE112M4，SFAF107-YE132M4，SFAF107-YE160M4，SFAF107-YE180M4，SFAF107-YE200M4，SFAF107-YE225M4，SFAF107-YE80M4，SFAF107-YE90M4，SFAF107-YEJ100M4，SFAF107-YEJ112M4，SFAF107-YEJ132M4，SFAF107-YEJ160M4，SFAF107-YEJ180M4，SFAF107-YEJ200M4，SFAF107-YEJ225M4，SFAF107-YEJ80M4，SFAF107-YEJ90M4，SFAF107-YEJB100M4，SFAF107-YEJB112M4，SFAF107-YEJB132M4，SFAF107-YEJB160M4，SFAF107-YEJB180M4，SFAF107-YEJB200M4，SFAF107-YEJB225M4，SFAF107-YEJB80M4，SFAF107-YEJB90M4，SFAF107-YP100M4，SFAF107-YP112M4，SFAF107-YP132M4，SFAF107-YP160M4，SFAF107-YP180M4，SFAF107-YP200M4，SFAF107-YP225M4，SFAF107-YP80M4，SFAF107-YP90M4，SFAF107-YPB100M4，SFAF107-YPB112M4，SFAF107-YPB132M4，SFAF107-YPB160M4，SFAF107-YPB180M4，SFAF107-YPB200M4，SFAF107-YPB225M4，SFAF107-YPB80M4，SFAF107-YPB90M4，SFAF107-YPE100M4，SFAF107-YPE112M4，SFAF107-YPE132M4，SFAF107-YPE160M4，SFAF107-YPE180M4，SFAF107-YPE200M4，SFAF107-YPE225M4，SFAF107-YPE80M4，SFAF107-YPE90M4，SFAF107-YS100M4，SFAF107-YS112M4，SFAF107-YS132M4，SFAF107-YS160M4，SFAF107-YS180M4，SFAF107-YS200M4，SFAF107-YS225M4，SFAF107-YS80M4，SFAF107-YS90M4，SFAF107-YVB100M4，SFAF107-YVB112M4，SFAF107-YVB132M4，SFAF107-YVB160M4，SFAF107-YVB180M4，SFAF107-YVB200M4，SFAF107-YVB225M4，SFAF107-YVB80M4，SFAF107-YVB90M4，SFAF107-YVP100M4，SFAF107-YVP112M4，SFAF107-YVP132M4，SFAF107-YVP160M4，SFAF107-YVP180M4，SFAF107-YVP200M4，SFAF107-YVP225M4，SFAF107-YVP80M4，SFAF107-YVP90M4，SFAF107-YVPEJ100M4，SFAF107-YVPEJ112M4，SFAF107-YVPEJ132M4，SFAF107-YVPEJ160M4，SFAF107-YVPEJ180M4，SFAF107-YVPEJ200M4，SFAF107-YVPEJ225M4，SFAF107-YVPEJ80M4，SFAF107-YVPEJ90M4，WFAF107-Y1.5KW，WFAF107-Y100M4，WFAF107-Y112M4，WFAF107-Y11KW，WFAF107-Y132M4，WFAF107-Y15KW，WFAF107-Y160M4，WFAF107-Y18.5KW，WFAF107-Y180M4，WFAF107-Y2.2KW，WFAF107-Y200M4，WFAF107-Y225M4，WFAF107-Y22KW，WFAF107-Y30KW，WFAF107-Y37KW，WFAF107-Y3KW，WFAF107-Y45KW，WFAF107-Y4KW，WFAF107-Y5.5KW，WFAF107-Y7.5KW，WFAF107-Y80M4，WFAF107-Y90M4，WFAF107-YB100M4，WFAF107-YB112M4，WFAF107-YB132M4，WFAF107-YB160M4，WFAF107-YB180M4，WFAF107-YB200M4，WFAF107-YB225M4，WFAF107-YB80M4，WFAF107-YB90M4，WFAF107-YDP100M4，WFAF107-YDP112M4，WFAF107-YDP132M4，WFAF107-YDP160M4，WFAF107-YDP180M4，WFAF107-YDP200M4，WFAF107-YDP225M4，WFAF107-YDP80M4，WFAF107-YDP90M4，WFAF107-YE100M4，WFAF107-YE112M4，WFAF107-YE132M4，WFAF107-YE160M4，WFAF107-YE180M4，WFAF107-YE200M4，WFAF107-YE225M4，WFAF107-YE80M4，WFAF107-YE90M4，WFAF107-YEJ100M4，WFAF107-YEJ112M4，WFAF107-YEJ132M4，WFAF107-YEJ160M4，WFAF107-YEJ180M4，WFAF107-YEJ200M4，WFAF107-YEJ225M4，WFAF107-YEJ80M4，WFAF107-YEJ90M4，WFAF107-YEJB100M4，WFAF107-YEJB112M4，WFAF107-YEJB132M4，WFAF107-YEJB160M4，WFAF107-YEJB180M4，WFAF107-YEJB200M4，WFAF107-YEJB225M4，WFAF107-YEJB80M4，WFAF107-YEJB90M4，WFAF107-YP100M4，WFAF107-YP112M4，WFAF107-YP132M4，WFAF107-YP160M4，WFAF107-YP180M4，WFAF107-YP200M4，WFAF107-YP225M4，WFAF107-YP80M4，WFAF107-YP90M4，WFAF107-YPB100M4，WFAF107-YPB112M4，WFAF107-YPB132M4，WFAF107-YPB160M4，WFAF107-YPB180M4，WFAF107-YPB200M4，WFAF107-YPB225M4，WFAF107-YPB80M4，WFAF107-YPB90M4，WFAF107-YPE100M4，WFAF107-YPE112M4，WFAF107-YPE132M4，WFAF107-YPE160M4，WFAF107-YPE180M4，WFAF107-YPE200M4，WFAF107-YPE225M4，WFAF107-YPE80M4，WFAF107-YPE90M4，WFAF107-YS100M4，WFAF107-YS112M4，WFAF107-YS132M4，WFAF107-YS160M4，WFAF107-YS180M4，WFAF107-YS200M4，WFAF107-YS225M4，WFAF107-YS80M4，WFAF107-YS90M4，WFAF107-YVB100M4，WFAF107-YVB112M4，WFAF107-YVB132M4，WFAF107-YVB160M4，WFAF107-YVB180M4，WFAF107-YVB200M4，WFAF107-YVB225M4，WFAF107-YVB80M4，WFAF107-YVB90M4，WFAF107-YVP100M4，WFAF107-YVP112M4，WFAF107-YVP132M4，WFAF107-YVP160M4，WFAF107-YVP180M4，WFAF107-YVP200M4，WFAF107-YVP225M4，WFAF107-YVP80M4，WFAF107-YVP90M4，WFAF107-YVPEJ100M4，WFAF107-YVPEJ112M4，WFAF107-YVPEJ132M4，WFAF107-YVPEJ160M4，WFAF107-YVPEJ180M4，WFAF107-YVPEJ200M4，WFAF107-YVPEJ225M4，WFAF107-YVPEJ80M4，WFAF107-YVPEJ90M4，GFAF109-Y1.5KW，GFAF109-Y100M4，GFAF109-Y112M4，GFAF109-Y11KW，GFAF109-Y132M4，GFAF109-Y15KW，GFAF109-Y160M4，GFAF109-Y18.5KW，GFAF109-Y180M4，GFAF109-Y2.2KW，GFAF109-Y200M4，GFAF109-Y225M4，GFAF109-Y22KW，GFAF109-Y30KW，GFAF109-Y37KW，GFAF109-Y3KW，GFAF109-Y45KW，GFAF109-Y4KW，GFAF109-Y5.5KW，GFAF109-Y7.5KW，GFAF109-Y80M4，GFAF109-Y90M4，GFAF109-YB100M4，GFAF109-YB112M4，GFAF109-YB132M4，GFAF109-YB160M4，GFAF109-YB180M4，GFAF109-YB200M4，GFAF109-YB225M4，GFAF109-YB80M4，GFAF109-YB90M4，GFAF109-YDP100M4，GFAF109-YDP112M4，GFAF109-YDP132M4，GFAF109-YDP160M4，GFAF109-YDP180M4，GFAF109-YDP200M4，GFAF109-YDP225M4，GFAF109-YDP80M4，GFAF109-YDP90M4，GFAF109-YE100M4，GFAF109-YE112M4，GFAF109-YE132M4，GFAF109-YE160M4，GFAF109-YE180M4，GFAF109-YE200M4，GFAF109-YE225M4，GFAF109-YE80M4，GFAF109-YE90M4，GFAF109-YEJ100M4，GFAF109-YEJ112M4，GFAF109-YEJ132M4，GFAF109-YEJ160M4，GFAF109-YEJ180M4，GFAF109-YEJ200M4，GFAF109-YEJ225M4，GFAF109-YEJ80M4，GFAF109-YEJ90M4，GFAF109-YEJB100M4，GFAF109-YEJB112M4，GFAF109-YEJB132M4，GFAF109-YEJB160M4，GFAF109-YEJB180M4，GFAF109-YEJB200M4，GFAF109-YEJB225M4，GFAF109-YEJB80M4，GFAF109-YEJB90M4，GFAF109-YP100M4，GFAF109-YP112M4，GFAF109-YP132M4，GFAF109-YP160M4，GFAF109-YP180M4，GFAF109-YP200M4，GFAF109-YP225M4，GFAF109-YP80M4，GFAF109-YP90M4，GFAF109-YPB100M4，GFAF109-YPB112M4，GFAF109-YPB132M4，GFAF109-YPB160M4，GFAF109-YPB180M4，GFAF109-YPB200M4，GFAF109-YPB225M4，GFAF109-YPB80M4，GFAF109-YPB90M4，GFAF109-YPE100M4，GFAF109-YPE112M4，GFAF109-YPE132M4，GFAF109-YPE160M4，GFAF109-YPE180M4，GFAF109-YPE200M4，GFAF109-YPE225M4，GFAF109-YPE80M4，GFAF109-YPE90M4，GFAF109-YS100M4，GFAF109-YS112M4，GFAF109-YS132M4，GFAF109-YS160M4，GFAF109-YS180M4，GFAF109-YS200M4，GFAF109-YS225M4，GFAF109-YS80M4，GFAF109-YS90M4，GFAF109-YVB100M4，GFAF109-YVB112M4，GFAF109-YVB132M4，GFAF109-YVB160M4，GFAF109-YVB180M4，GFAF109-YVB200M4，GFAF109-YVB225M4，GFAF109-YVB80M4，GFAF109-YVB90M4，GFAF109-YVP100M4，GFAF109-YVP112M4，GFAF109-YVP132M4，GFAF109-YVP160M4，GFAF109-YVP180M4，GFAF109-YVP200M4，GFAF109-YVP225M4，GFAF109-YVP80M4，GFAF109-YVP90M4，GFAF109-YVPEJ100M4，GFAF109-YVPEJ112M4，GFAF109-YVPEJ132M4，GFAF109-YVPEJ160M4，GFAF109-YVPEJ180M4，GFAF109-YVPEJ200M4，GFAF109-YVPEJ225M4，GFAF109-YVPEJ80M4，GFAF109-YVPEJ90M4。
