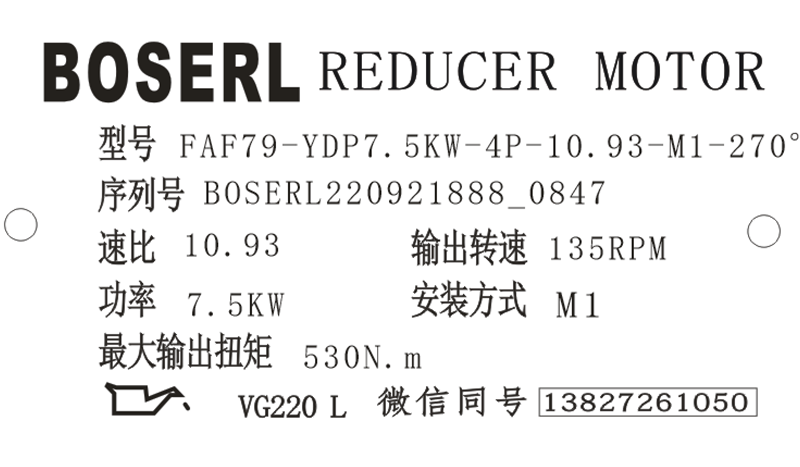

FAF79減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FAF79減速機選型樣本。

FAF79-YDP7.5KW-4P-10.93-M1-270°

FAF：系列代號

79：減速機規格代號

YDP：電機

7.5KW：電機功率

4P：電機級數

10.93：減速機傳動比

M1：減速機安裝位置

270°：接線盒位置

FAF79減速機AD軸入模塊配置：

FAF79減速機AD軸入模塊使用對中軸肩安裝應用設備：對應用設備進行固定時，必須提供相應長度的螺栓。新螺栓的長度L計算如下：［1］t+a；［t］旋入深度（參見表格）；［a］應用設備的厚度；［s］緊固螺紋（參見表格）

FAF79減速機AD軸入模塊根據計算所得的螺栓長度，選取最接近的較小的標準長度；從對中軸肩上卸下固定螺栓；清潔裝配表面和對中軸肩；清潔新螺栓的螺紋并且使用螺栓緊固劑抹在前段螺紋上；將應用設備裝在對中軸肩上，并根據下表所列的擰緊扭矩TA(見下表)擰入緊固螺栓。變頻電機減速機

FAF79減速機AD軸入模塊允許荷載：安裝電機時可能出現超常負荷；嚴禁超出下表所列的負荷值。強度等級為8.8的連接螺栓的最大負荷值。電機的最大允許許重力Fqmax，隨著中心距X的增加而呈線性下降。在中心距減小的情況下，F(xiàn)qmax不增加；聯軸器輸出法蘭盤直徑：160mm。齒輪減速電機

FAF79減速機AD軸入模塊在進行調節之前松開螺母，使得螺栓可以在支架上軸向移動。當?shù)竭_最終調節位置后再上緊螺母。不可通過支架來調整電機安裝平臺。

FAF79減速機維護檢查：

FAF79減速機檢查：首次運行300小時后更換潤滑油，以后每6個月或3000小時檢查一次，發現油位不足或明顯渾濁應及時更換(參考下列圖表)：操作步驟檢查油的質量與油位；檢查是否可能因軸承損壞產生運轉噪音；檢查密封圈是否漏油；對于帶扭矩臂的FAF79減速機：檢測橡膠緩沖塊，必要時進行更換。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換礦物油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換合成潤滑油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。示具體情況而定，不定期檢查（取決于外部影響）：修補或者更新表面漆/防銹漆。

FAF79減速機潤滑油更換周期：下圖為在一般條件下標準FAF79減速機的更換周期，對于惡劣環境或有腐蝕條件下使用的特殊情況要縮短更換潤滑油的間隔。平行軸斜齒輪減速機

FAF79減速機維護：根據外部受到的影響，可以在必要情況下對表面漆/防銹漆進行修補或更新。

FAF79減速機型號：

SFAF77-Y0.18KW，SFAF77-Y0.25KW，SFAF77-Y0.37KW，SFAF77-Y0.55KW，SFAF77-Y0.75KW，SFAF77-Y1.1KW，SFAF77-Y1.5KW，SFAF77-Y100M4，SFAF77-Y112M4，SFAF77-Y11KW，SFAF77-Y132M4，SFAF77-Y160M4，SFAF77-Y2.2KW，SFAF77-Y3KW，SFAF77-Y4KW，SFAF77-Y5.5KW，SFAF77-Y63M4，SFAF77-Y7.5KW，SFAF77-Y71M4，SFAF77-Y80M4，SFAF77-Y90M4，SFAF77-YB100M4，SFAF77-YB112M4，SFAF77-YB132M4，SFAF77-YB160M4，SFAF77-YB63M4，SFAF77-YB71M4，SFAF77-YB80M4，SFAF77-YB90M4，SFAF77-YDP100M4，SFAF77-YDP112M4，SFAF77-YDP132M4，SFAF77-YDP160M4，SFAF77-YDP63M4，SFAF77-YDP71M4，SFAF77-YDP80M4，SFAF77-YDP90M4，SFAF77-YE100M4，SFAF77-YE112M4，SFAF77-YE132M4，SFAF77-YE160M4，SFAF77-YE63M4，SFAF77-YE71M4，SFAF77-YE80M4，SFAF77-YE90M4，SFAF77-YEJ100M4，SFAF77-YEJ112M4，SFAF77-YEJ132M4，SFAF77-YEJ160M4，SFAF77-YEJ63M4，SFAF77-YEJ71M4，SFAF77-YEJ80M4，SFAF77-YEJ90M4，SFAF77-YEJB100M4，SFAF77-YEJB112M4，SFAF77-YEJB132M4，SFAF77-YEJB160M4，SFAF77-YEJB63M4，SFAF77-YEJB71M4，SFAF77-YEJB80M4，SFAF77-YEJB90M4，SFAF77-YP100M4，SFAF77-YP112M4，SFAF77-YP132M4，SFAF77-YP160M4，SFAF77-YP63M4，SFAF77-YP71M4，SFAF77-YP80M4，SFAF77-YP90M4，SFAF77-YPB100M4，SFAF77-YPB112M4，SFAF77-YPB132M4，SFAF77-YPB160M4，SFAF77-YPB63M4，SFAF77-YPB71M4，SFAF77-YPB80M4，SFAF77-YPB90M4，SFAF77-YPE100M4，SFAF77-YPE112M4，SFAF77-YPE132M4，SFAF77-YPE160M4，SFAF77-YPE63M4，SFAF77-YPE71M4，SFAF77-YPE80M4，SFAF77-YPE90M4，SFAF77-YS100M4，SFAF77-YS112M4，SFAF77-YS132M4，SFAF77-YS160M4，SFAF77-YS63M4，SFAF77-YS71M4，SFAF77-YS80M4，SFAF77-YS90M4，SFAF77-YVB100M4，SFAF77-YVB112M4，SFAF77-YVB132M4，SFAF77-YVB160M4，SFAF77-YVB63M4，SFAF77-YVB71M4，SFAF77-YVB80M4，SFAF77-YVB90M4，SFAF77-YVP100M4，SFAF77-YVP112M4，SFAF77-YVP132M4，SFAF77-YVP160M4，SFAF77-YVP63M4，SFAF77-YVP71M4，SFAF77-YVP80M4，SFAF77-YVP90M4，SFAF77-YVPEJ100M4，SFAF77-YVPEJ112M4，SFAF77-YVPEJ132M4，SFAF77-YVPEJ160M4，SFAF77-YVPEJ63M4，SFAF77-YVPEJ71M4，SFAF77-YVPEJ80M4，SFAF77-YVPEJ90M4，AFAF77-Y0.18KW，AFAF77-Y0.25KW，AFAF77-Y0.37KW，AFAF77-Y0.55KW，AFAF77-Y0.75KW，AFAF77-Y1.1KW，AFAF77-Y1.5KW，AFAF77-Y100M4，AFAF77-Y112M4，AFAF77-Y11KW，AFAF77-Y132M4，AFAF77-Y160M4，AFAF77-Y2.2KW，AFAF77-Y3KW，AFAF77-Y4KW，AFAF77-Y5.5KW，AFAF77-Y63M4，AFAF77-Y7.5KW，AFAF77-Y71M4，AFAF77-Y80M4，AFAF77-Y90M4，AFAF77-YB100M4，AFAF77-YB112M4，AFAF77-YB132M4，AFAF77-YB160M4，AFAF77-YB63M4，AFAF77-YB71M4，AFAF77-YB80M4，AFAF77-YB90M4，AFAF77-YDP100M4，AFAF77-YDP112M4，AFAF77-YDP132M4，AFAF77-YDP160M4，AFAF77-YDP63M4，AFAF77-YDP71M4，AFAF77-YDP80M4，AFAF77-YDP90M4，AFAF77-YE100M4，AFAF77-YE112M4，AFAF77-YE132M4，AFAF77-YE160M4，AFAF77-YE63M4，AFAF77-YE71M4，AFAF77-YE80M4，AFAF77-YE90M4，AFAF77-YEJ100M4，AFAF77-YEJ112M4，AFAF77-YEJ132M4，AFAF77-YEJ160M4，AFAF77-YEJ63M4，AFAF77-YEJ71M4，AFAF77-YEJ80M4，AFAF77-YEJ90M4，AFAF77-YEJB100M4，AFAF77-YEJB112M4，AFAF77-YEJB132M4，AFAF77-YEJB160M4，AFAF77-YEJB63M4，AFAF77-YEJB71M4，AFAF77-YEJB80M4，AFAF77-YEJB90M4，AFAF77-YP100M4，AFAF77-YP112M4，AFAF77-YP132M4，AFAF77-YP160M4，AFAF77-YP63M4，AFAF77-YP71M4，AFAF77-YP80M4，AFAF77-YP90M4，AFAF77-YPB100M4，AFAF77-YPB112M4，AFAF77-YPB132M4，AFAF77-YPB160M4，AFAF77-YPB63M4，AFAF77-YPB71M4，AFAF77-YPB80M4，AFAF77-YPB90M4，AFAF77-YPE100M4，AFAF77-YPE112M4，AFAF77-YPE132M4，AFAF77-YPE160M4，AFAF77-YPE63M4，AFAF77-YPE71M4，AFAF77-YPE80M4，AFAF77-YPE90M4，AFAF77-YS100M4，AFAF77-YS112M4，AFAF77-YS132M4，AFAF77-YS160M4，AFAF77-YS63M4，AFAF77-YS71M4，AFAF77-YS80M4，AFAF77-YS90M4，AFAF77-YVB100M4，AFAF77-YVB112M4，AFAF77-YVB132M4，AFAF77-YVB160M4，AFAF77-YVB63M4，AFAF77-YVB71M4，AFAF77-YVB80M4，AFAF77-YVB90M4，AFAF77-YVP100M4，AFAF77-YVP112M4，AFAF77-YVP132M4，AFAF77-YVP160M4，AFAF77-YVP63M4，AFAF77-YVP71M4，AFAF77-YVP80M4，AFAF77-YVP90M4，AFAF77-YVPEJ100M4，AFAF77-YVPEJ112M4，AFAF77-YVPEJ132M4，AFAF77-YVPEJ160M4，AFAF77-YVPEJ63M4，AFAF77-YVPEJ71M4，AFAF77-YVPEJ80M4，AFAF77-YVPEJ90M4，NFAF77-Y0.18KW，NFAF77-Y0.25KW，NFAF77-Y0.37KW，NFAF77-Y0.55KW，NFAF77-Y0.75KW，NFAF77-Y1.1KW，NFAF77-Y1.5KW，NFAF77-Y100M4，NFAF77-Y112M4，NFAF77-Y11KW，NFAF77-Y132M4，NFAF77-Y160M4，NFAF77-Y2.2KW，NFAF77-Y3KW，NFAF77-Y4KW，NFAF77-Y5.5KW，NFAF77-Y63M4，NFAF77-Y7.5KW，NFAF77-Y71M4，NFAF77-Y80M4，NFAF77-Y90M4，NFAF77-YB100M4，NFAF77-YB112M4，NFAF77-YB132M4，NFAF77-YB160M4，NFAF77-YB63M4，NFAF77-YB71M4，NFAF77-YB80M4，NFAF77-YB90M4，NFAF77-YDP100M4，NFAF77-YDP112M4，NFAF77-YDP132M4，NFAF77-YDP160M4，NFAF77-YDP63M4，NFAF77-YDP71M4，NFAF77-YDP80M4，NFAF77-YDP90M4，NFAF77-YE100M4，NFAF77-YE112M4，NFAF77-YE132M4，NFAF77-YE160M4，NFAF77-YE63M4，NFAF77-YE71M4，NFAF77-YE80M4，NFAF77-YE90M4，NFAF77-YEJ100M4，NFAF77-YEJ112M4，NFAF77-YEJ132M4，NFAF77-YEJ160M4，NFAF77-YEJ63M4，NFAF77-YEJ71M4，NFAF77-YEJ80M4，NFAF77-YEJ90M4，NFAF77-YEJB100M4，NFAF77-YEJB112M4，NFAF77-YEJB132M4，NFAF77-YEJB160M4，NFAF77-YEJB63M4，NFAF77-YEJB71M4，NFAF77-YEJB80M4，NFAF77-YEJB90M4，NFAF77-YP100M4，NFAF77-YP112M4，NFAF77-YP132M4，NFAF77-YP160M4，NFAF77-YP63M4，NFAF77-YP71M4，NFAF77-YP80M4，NFAF77-YP90M4，NFAF77-YPB100M4，NFAF77-YPB112M4，NFAF77-YPB132M4，NFAF77-YPB160M4，NFAF77-YPB63M4，NFAF77-YPB71M4，NFAF77-YPB80M4，NFAF77-YPB90M4，NFAF77-YPE100M4，NFAF77-YPE112M4，NFAF77-YPE132M4，NFAF77-YPE160M4，NFAF77-YPE63M4，NFAF77-YPE71M4，NFAF77-YPE80M4，NFAF77-YPE90M4，NFAF77-YS100M4，NFAF77-YS112M4，NFAF77-YS132M4，NFAF77-YS160M4，NFAF77-YS63M4，NFAF77-YS71M4，NFAF77-YS80M4，NFAF77-YS90M4，NFAF77-YVB100M4，NFAF77-YVB112M4，NFAF77-YVB132M4，NFAF77-YVB160M4，NFAF77-YVB63M4，NFAF77-YVB71M4，NFAF77-YVB80M4，NFAF77-YVB90M4，NFAF77-YVP100M4，NFAF77-YVP112M4，NFAF77-YVP132M4，NFAF77-YVP160M4，NFAF77-YVP63M4，NFAF77-YVP71M4，NFAF77-YVP80M4，NFAF77-YVP90M4，NFAF77-YVPEJ100M4，NFAF77-YVPEJ112M4，NFAF77-YVPEJ132M4，NFAF77-YVPEJ160M4，NFAF77-YVPEJ63M4，NFAF77-YVPEJ71M4，NFAF77-YVPEJ80M4，NFAF77-YVPEJ90M4，WFAF77-Y0.18KW，WFAF77-Y0.25KW，WFAF77-Y0.37KW，WFAF77-Y0.55KW，WFAF77-Y0.75KW，WFAF77-Y1.1KW，WFAF77-Y1.5KW，WFAF77-Y100M4，WFAF77-Y112M4，WFAF77-Y11KW，WFAF77-Y132M4，WFAF77-Y160M4，WFAF77-Y2.2KW，WFAF77-Y3KW，WFAF77-Y4KW，WFAF77-Y5.5KW，WFAF77-Y63M4，WFAF77-Y7.5KW，WFAF77-Y71M4，WFAF77-Y80M4，WFAF77-Y90M4，WFAF77-YB100M4，WFAF77-YB112M4，WFAF77-YB132M4，WFAF77-YB160M4，WFAF77-YB63M4，WFAF77-YB71M4，WFAF77-YB80M4，WFAF77-YB90M4，WFAF77-YDP100M4，WFAF77-YDP112M4，WFAF77-YDP132M4，WFAF77-YDP160M4，WFAF77-YDP63M4，WFAF77-YDP71M4，WFAF77-YDP80M4，WFAF77-YDP90M4，WFAF77-YE100M4，WFAF77-YE112M4，WFAF77-YE132M4，WFAF77-YE160M4，WFAF77-YE63M4，WFAF77-YE71M4，WFAF77-YE80M4，WFAF77-YE90M4，WFAF77-YEJ100M4，WFAF77-YEJ112M4，WFAF77-YEJ132M4，WFAF77-YEJ160M4，WFAF77-YEJ63M4，WFAF77-YEJ71M4，WFAF77-YEJ80M4，WFAF77-YEJ90M4，WFAF77-YEJB100M4，WFAF77-YEJB112M4，WFAF77-YEJB132M4，WFAF77-YEJB160M4，WFAF77-YEJB63M4，WFAF77-YEJB71M4，WFAF77-YEJB80M4，WFAF77-YEJB90M4，WFAF77-YP100M4，WFAF77-YP112M4，WFAF77-YP132M4，WFAF77-YP160M4，WFAF77-YP63M4，WFAF77-YP71M4，WFAF77-YP80M4，WFAF77-YP90M4，WFAF77-YPB100M4，WFAF77-YPB112M4，WFAF77-YPB132M4，WFAF77-YPB160M4，WFAF77-YPB63M4，WFAF77-YPB71M4，WFAF77-YPB80M4，WFAF77-YPB90M4，WFAF77-YPE100M4，WFAF77-YPE112M4，WFAF77-YPE132M4，WFAF77-YPE160M4，WFAF77-YPE63M4，WFAF77-YPE71M4，WFAF77-YPE80M4，WFAF77-YPE90M4，WFAF77-YS100M4，WFAF77-YS112M4，WFAF77-YS132M4，WFAF77-YS160M4，WFAF77-YS63M4，WFAF77-YS71M4，WFAF77-YS80M4，WFAF77-YS90M4，WFAF77-YVB100M4，WFAF77-YVB112M4，WFAF77-YVB132M4，WFAF77-YVB160M4，WFAF77-YVB63M4，WFAF77-YVB71M4，WFAF77-YVB80M4，WFAF77-YVB90M4，WFAF77-YVP100M4，WFAF77-YVP112M4，WFAF77-YVP132M4，WFAF77-YVP160M4，WFAF77-YVP63M4，WFAF77-YVP71M4，WFAF77-YVP80M4，WFAF77-YVP90M4，WFAF77-YVPEJ100M4，WFAF77-YVPEJ112M4，WFAF77-YVPEJ132M4，WFAF77-YVPEJ160M4，WFAF77-YVPEJ63M4，WFAF77-YVPEJ71M4，WFAF77-YVPEJ80M4，WFAF77-YVPEJ90M4，GFAF79-Y0.18KW，GFAF79-Y0.25KW，GFAF79-Y0.37KW，GFAF79-Y0.55KW，GFAF79-Y0.75KW，GFAF79-Y1.1KW，GFAF79-Y1.5KW，GFAF79-Y100M4，GFAF79-Y112M4，GFAF79-Y11KW，GFAF79-Y132M4，GFAF79-Y160M4，GFAF79-Y2.2KW，GFAF79-Y3KW，GFAF79-Y4KW，GFAF79-Y5.5KW，GFAF79-Y63M4，GFAF79-Y7.5KW，GFAF79-Y71M4，GFAF79-Y80M4，GFAF79-Y90M4，GFAF79-YB100M4，GFAF79-YB112M4，GFAF79-YB132M4，GFAF79-YB160M4，GFAF79-YB63M4，GFAF79-YB71M4，GFAF79-YB80M4，GFAF79-YB90M4，GFAF79-YDP100M4，GFAF79-YDP112M4，GFAF79-YDP132M4，GFAF79-YDP160M4，GFAF79-YDP63M4，GFAF79-YDP71M4，GFAF79-YDP80M4，GFAF79-YDP90M4，GFAF79-YE100M4，GFAF79-YE112M4，GFAF79-YE132M4，GFAF79-YE160M4，GFAF79-YE63M4，GFAF79-YE71M4，GFAF79-YE80M4，GFAF79-YE90M4，GFAF79-YEJ100M4，GFAF79-YEJ112M4，GFAF79-YEJ132M4，GFAF79-YEJ160M4，GFAF79-YEJ63M4，GFAF79-YEJ71M4，GFAF79-YEJ80M4，GFAF79-YEJ90M4，GFAF79-YEJB100M4，GFAF79-YEJB112M4，GFAF79-YEJB132M4，GFAF79-YEJB160M4，GFAF79-YEJB63M4，GFAF79-YEJB71M4，GFAF79-YEJB80M4，GFAF79-YEJB90M4，GFAF79-YP100M4，GFAF79-YP112M4，GFAF79-YP132M4，GFAF79-YP160M4，GFAF79-YP63M4，GFAF79-YP71M4，GFAF79-YP80M4，GFAF79-YP90M4，GFAF79-YPB100M4，GFAF79-YPB112M4，GFAF79-YPB132M4，GFAF79-YPB160M4，GFAF79-YPB63M4，GFAF79-YPB71M4，GFAF79-YPB80M4，GFAF79-YPB90M4，GFAF79-YPE100M4，GFAF79-YPE112M4，GFAF79-YPE132M4，GFAF79-YPE160M4，GFAF79-YPE63M4，GFAF79-YPE71M4，GFAF79-YPE80M4，GFAF79-YPE90M4，GFAF79-YS100M4，GFAF79-YS112M4，GFAF79-YS132M4，GFAF79-YS160M4，GFAF79-YS63M4，GFAF79-YS71M4，GFAF79-YS80M4，GFAF79-YS90M4，GFAF79-YVB100M4，GFAF79-YVB112M4，GFAF79-YVB132M4，GFAF79-YVB160M4，GFAF79-YVB63M4，GFAF79-YVB71M4，GFAF79-YVB80M4，GFAF79-YVB90M4，GFAF79-YVP100M4，GFAF79-YVP112M4，GFAF79-YVP132M4，GFAF79-YVP160M4，GFAF79-YVP63M4，GFAF79-YVP71M4，GFAF79-YVP80M4，GFAF79-YVP90M4，GFAF79-YVPEJ100M4，GFAF79-YVPEJ112M4，GFAF79-YVPEJ132M4，GFAF79-YVPEJ160M4，GFAF79-YVPEJ63M4，GFAF79-YVPEJ71M4，GFAF79-YVPEJ80M4，GFAF79-YVPEJ90M4。
